Part 2 - Engineering Data
7 Hydronic Performance

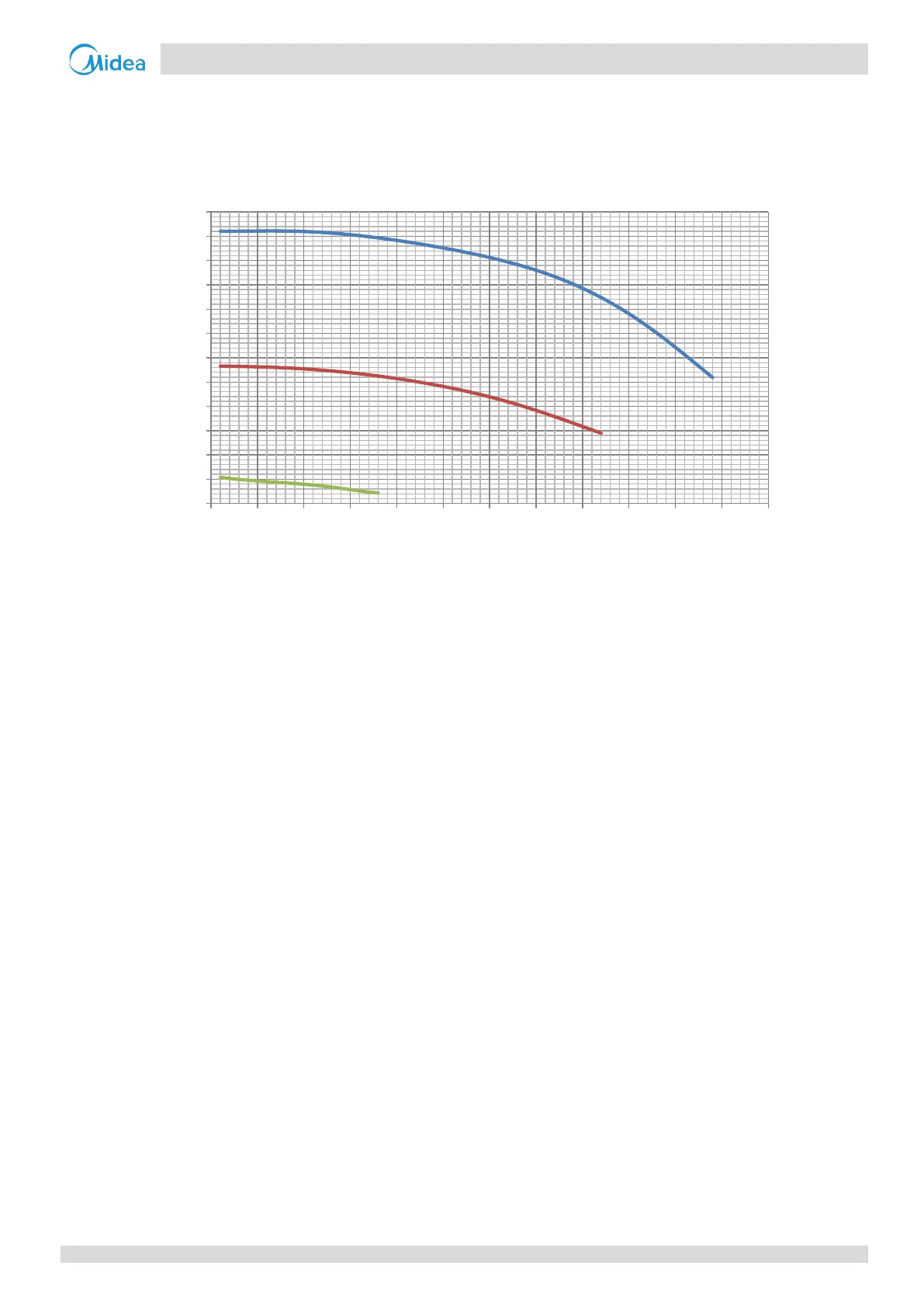

Figure 2-7.1: MHC-V18(22, 26,30)W/D2RN8 hydronic performance
1
Abbreviations:
ESP: External static pressure
Notes:
1. I, II and III indicate water pump speed:
I: Low
II: Medium
III: High.
0
10
20
30
40
50
60
70
80
90
100
110
120
0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 5.5 6.0
ESP (kPa)
Flow rate (m
3
/h)
Available external static presurre VS Flow rate
Ⅱ
Ⅰ
Ⅲ
