Appendix

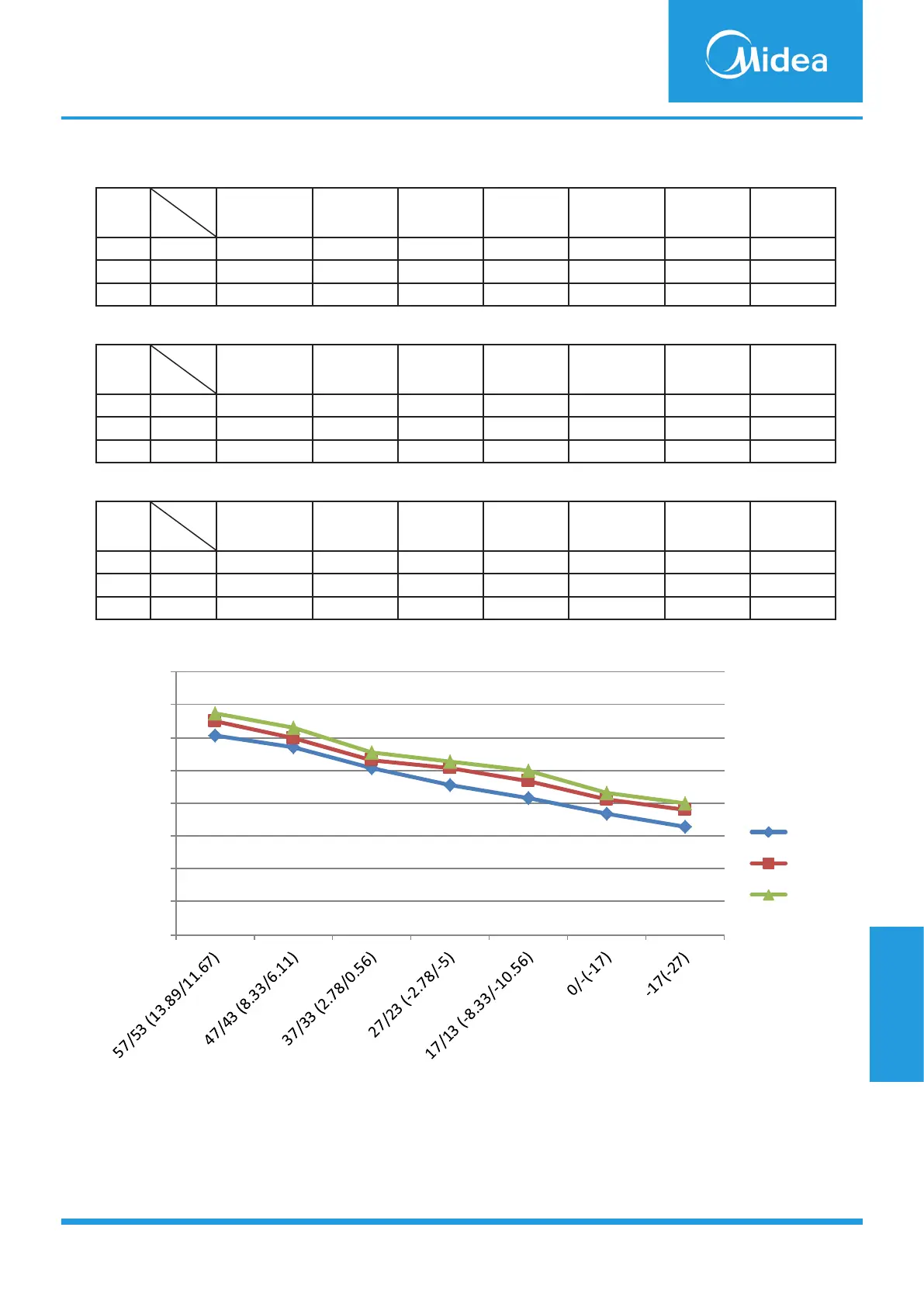

Heating chart:
°F(°C)
ODT
IDT
57/53
(13.89/11.67)
47/43
(8.33/6.11)
37/33
(2.78/0.56)
27/23
(-2.78/-5)
17/13 (-8.33/-
10.56)
0/-2
(-17/-19)
-17/-18
(-27/-28)
BAR 55 30.3 28.5 25.3 22.8 20.8 18.5 16.5
BAR 65 32.5 30.0 26.6 25.4 23.3 20.5 19.0
BAR 75 33.8 31.5 27.8 26.3 24.9 21.5 20.0
°F(°C)
ODT
IDT
57/53
(13.89/11.67)
47/43
(8.33/6.11)
37/33
(2.78/0.56)
27/23
(-2.78/-5)
17/13 (-8.33/-
10.56)
0/-2
(-17/-19)
-17/-18
(-27/-28)
PSI 55 439 413 367 330 302 268 239
PSI 65 471 435 386 368 339 297 276
PSI 75 489 457 403 381 362 312 290
°F(°C)
ODT
IDT
57/53
(13.89/11.67)
47/43
(8.33/6.11)
37/33
(2.78/0.56)
27/23
(-2.78/-5)
17/13 (-8.33/-
10.56)
0/-2
(-17/-19)
-17/-18
(-27/-28)
MPA 55 3.03 2.85 2.53 2.28 2.08 1.85 1.65
MPA 65 3.25 3.00 2.66 2.54 2.33 2.05 1.90
MPA 75 3.38 3.15 2.78 2.63 2.49 2.15 2.00
0
0.5
1
1.5
2
2.5
3
3.5
4
55
65
75
