Maintenance and
Disassembly
Page 29
2. Disassembly
2.1 Indoor unit
1. Front Panel
Procedure Illustration

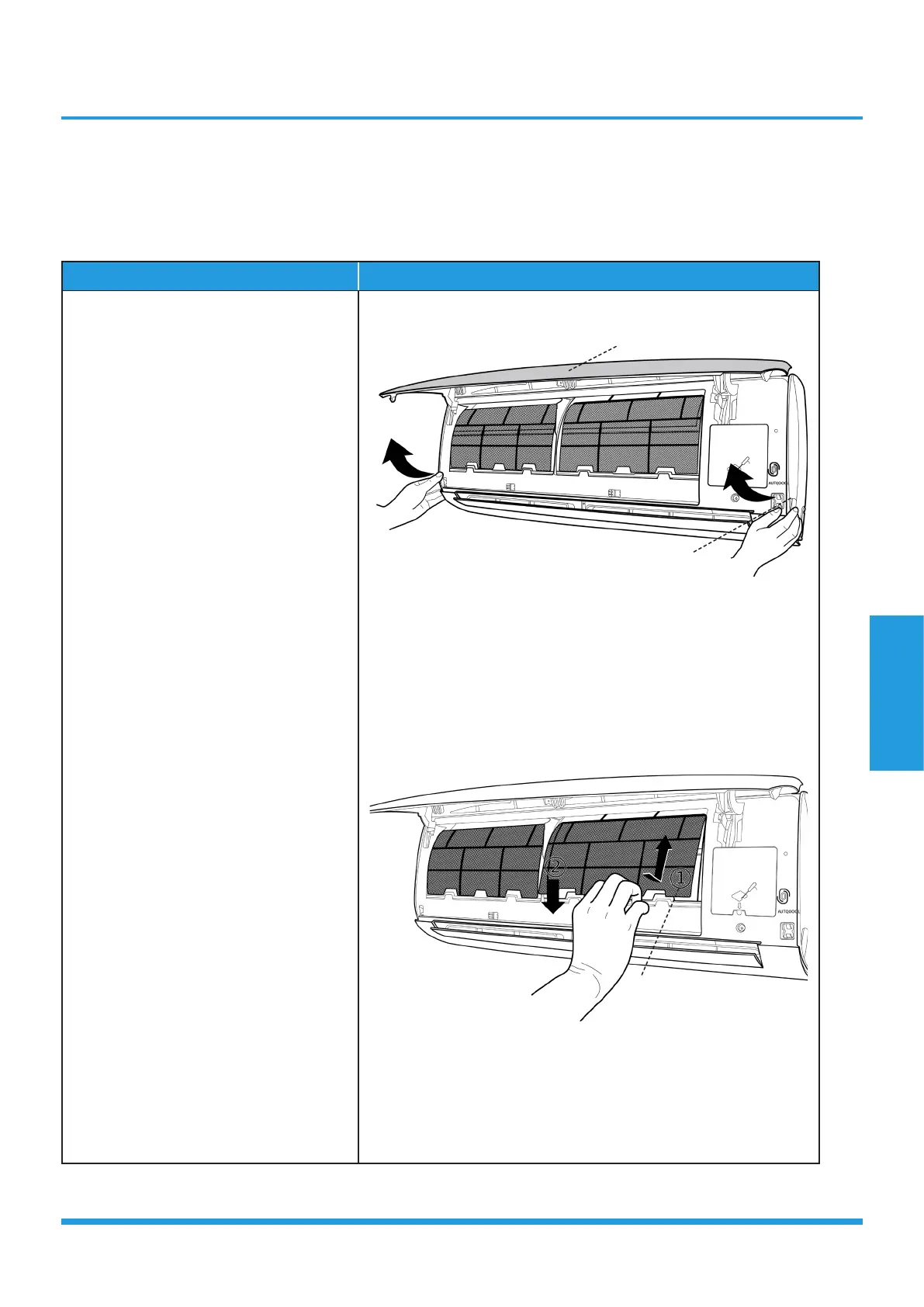

3) Hold the front panel by the tabs on
the both sides and lift it (see CJ_MB1_
INV_001).
4) Push up the bottom of an air
filter (step 1), and then pull it out
downwards (step 2) (see CJ_MB1_
INV_002).
CJ_MB1_INV_001
CJ_MB1_INV_002
Note: This section is for reference only. Actual unit appearance may vary.
Front Panel
Tab
Filter
