Maintenance and
Disassembly
Page 33
Procedure Illustration

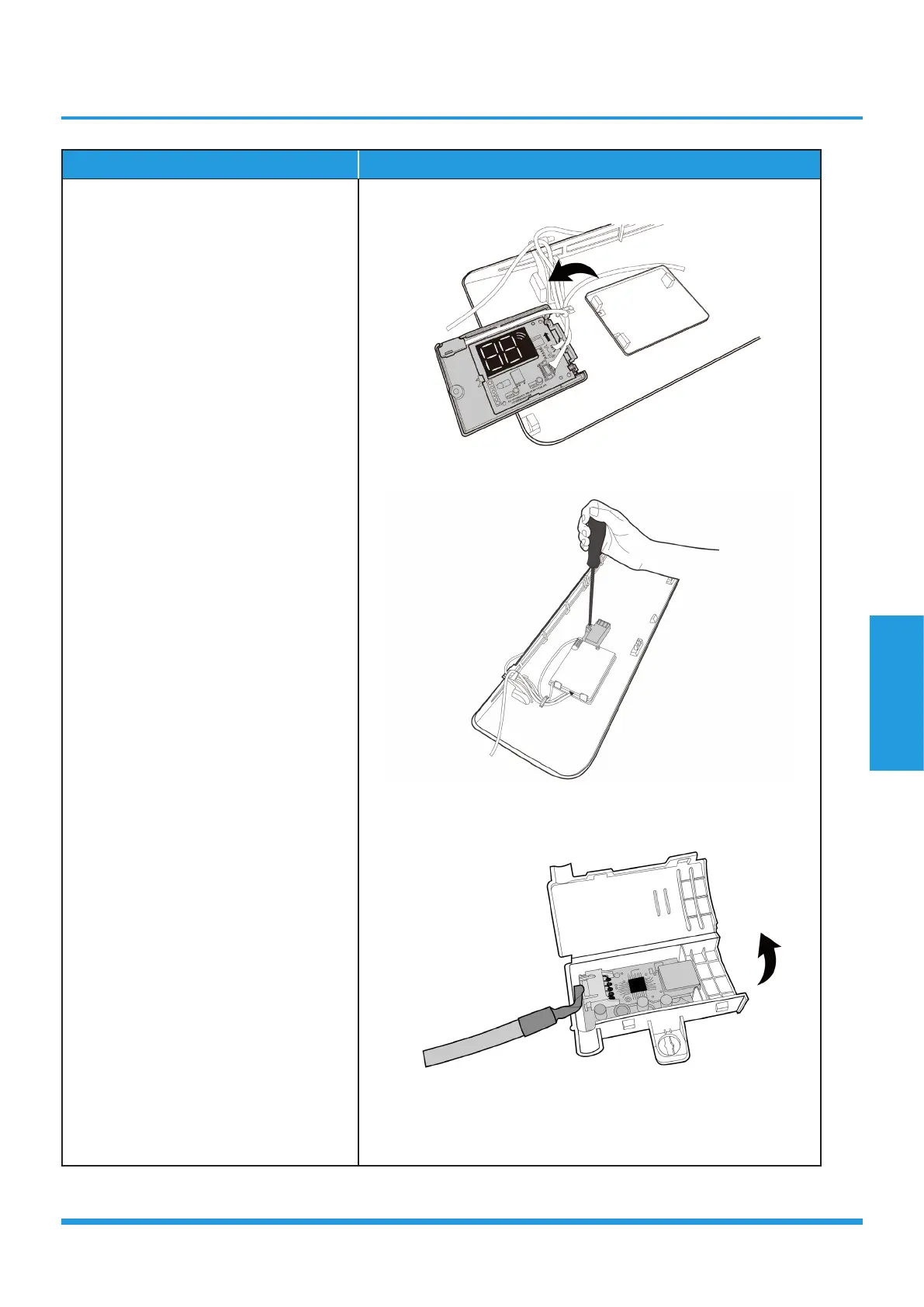

12) Rotate the display board in the
direction shown in the right picture.
(see CJ_MB1_INV_010)
13) Remove 1 screw of the wifi model.
(see CJ_MB1_INV_011).
14) Rotate the wifi model in the direction
shown in the right picture. (see CJ_
MB1_INV_012)
CJ_MB1_INV_010
CJ_MB1_INV_011
CJ_MB1_INV_012
Note: This section is for reference only. Actual unit appearance may vary.
