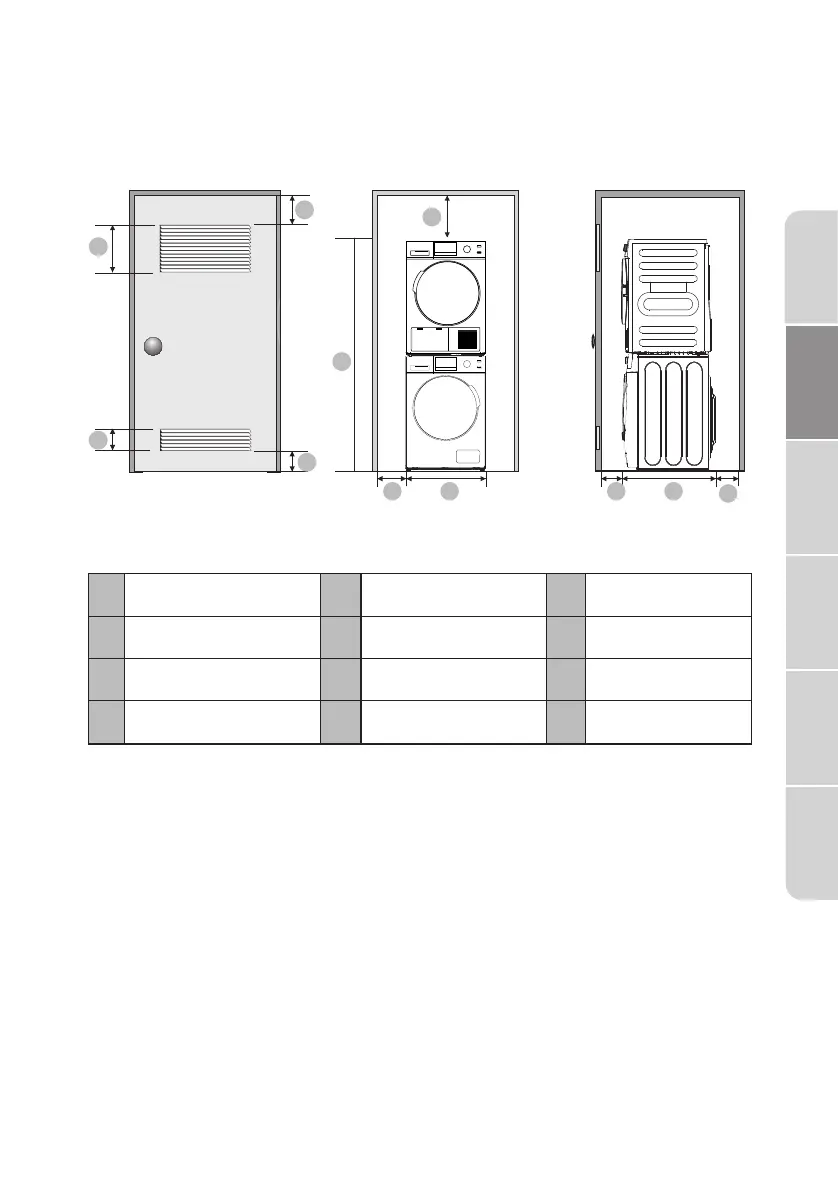

The front of the closet must have two unobstructed air openings for a
combined minimum total area of 72 sq.in. (465 sq.cm) with a minimum
clearance of 3 in. (76mm) at the top and bottom. A slatted door with
equivalent space clearance is acceptable.
Installation with stacked washing machine and dryer
NOTE:
2 in. (50.8 mm)
2 in. (50.8 mm)
3 in. (76 mm) 3 in. (76 mm)
3 in. (76 mm)
48 in.
2
(3100 mm
2
)
24 in.
2
(1550 mm
2
)
1 in. (25.4 mm)
23.4 in. (595 mm)
25.7 in. (653 mm)
A
B
C
D
E
F
G H I J
K
C
D
G
H
K
A
B
E
F
I
J
/
