The following parts are optional for specific models.
If your dryer has following parts, please wear gloves and install them as
per the instruction below.

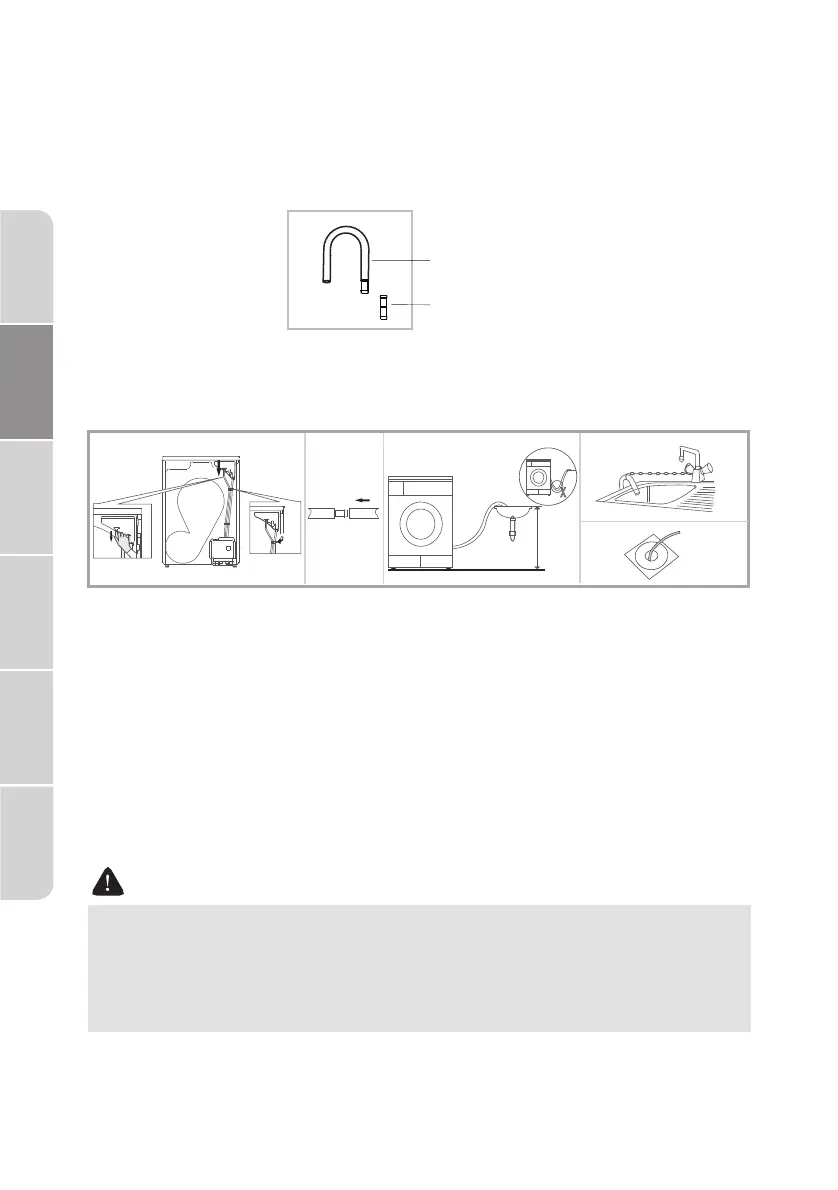

Take the hose out of the holder.
water tightness, there is tension between the hose and the inflow and
therefore an increased force is required for disassembly.)
Insert the drain hose and the external drainage hose into the connector.
Put the hose on the washing basin or floor drain. To assure the smooth
drainage, ensure the pipe is not folded.
The wiring diagram is located on the back board of the unit.
DRAIN SYSTEM
ELECTRIC REQUIREMENTS
Installation
WARNING
•
The improper connection of the equipment grounding conductor can
result in the risk of electric shock. Check with a qualified electrician or
serviceman if you are in doubt as to whether your dryer is properly
grounded. Do not modify the plug provided with your dryer - if it
doesn’t fit the outlet, have a proper outlet installed by a qualified
electrician.
Condensing drain hose
Connector
Ma x. 78 cm
