Service manual for Washing Machine
-------------------------------------------------------------------------------------------------------------------------------------------------------
－ 14 －

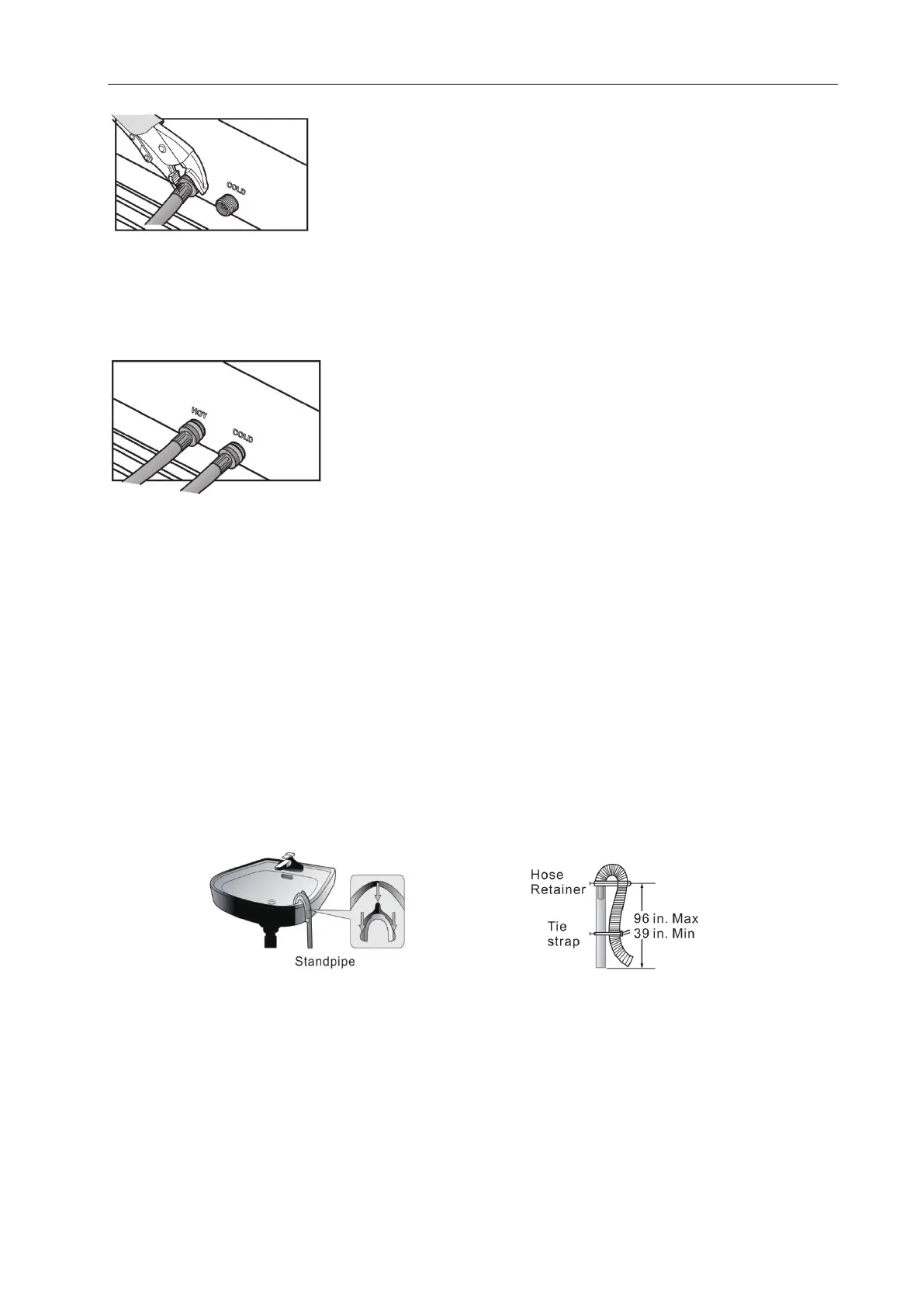

To ensure the correct water usage, connect both the HOT and COLD water faucets. If either or both are not
connected, an error code can occur. If you do not want to use the HOT water supply hose, insert the water intake
cap into the HOT water supply intake hole. In this case, you must select the Tap Cold option for the water
temperature.
6. Turn on the HOT and COLD water supplies and check all the water supply intake connections and the faucets
for water leaks.
STEP 3: Connect the drain hose
1. Put the Drain Hose out of the Clamp.
2. Position the other end of the drain hose.
It can be positioned in three ways.
A. Over the edge of wash basin
Secure the guide to the side of the basin wall with a hook or to the tap with a piece of string to prevent the
drain hose from moving.
B. In a standpipe
The standpipe must be no shorter than 39 in.(99cm) and no longer than 96 in. (245cm).
C. In a laundry tub
The laundry tub must be no shorter than 39 in. (99cm) and no higher than 96 in. (245cm).
