－ 19 －
Fd
The door opened over 20
seconds with Child Lock
function activated.
Power off the unit.
Deactivate the Child Lock function.
Call service center.

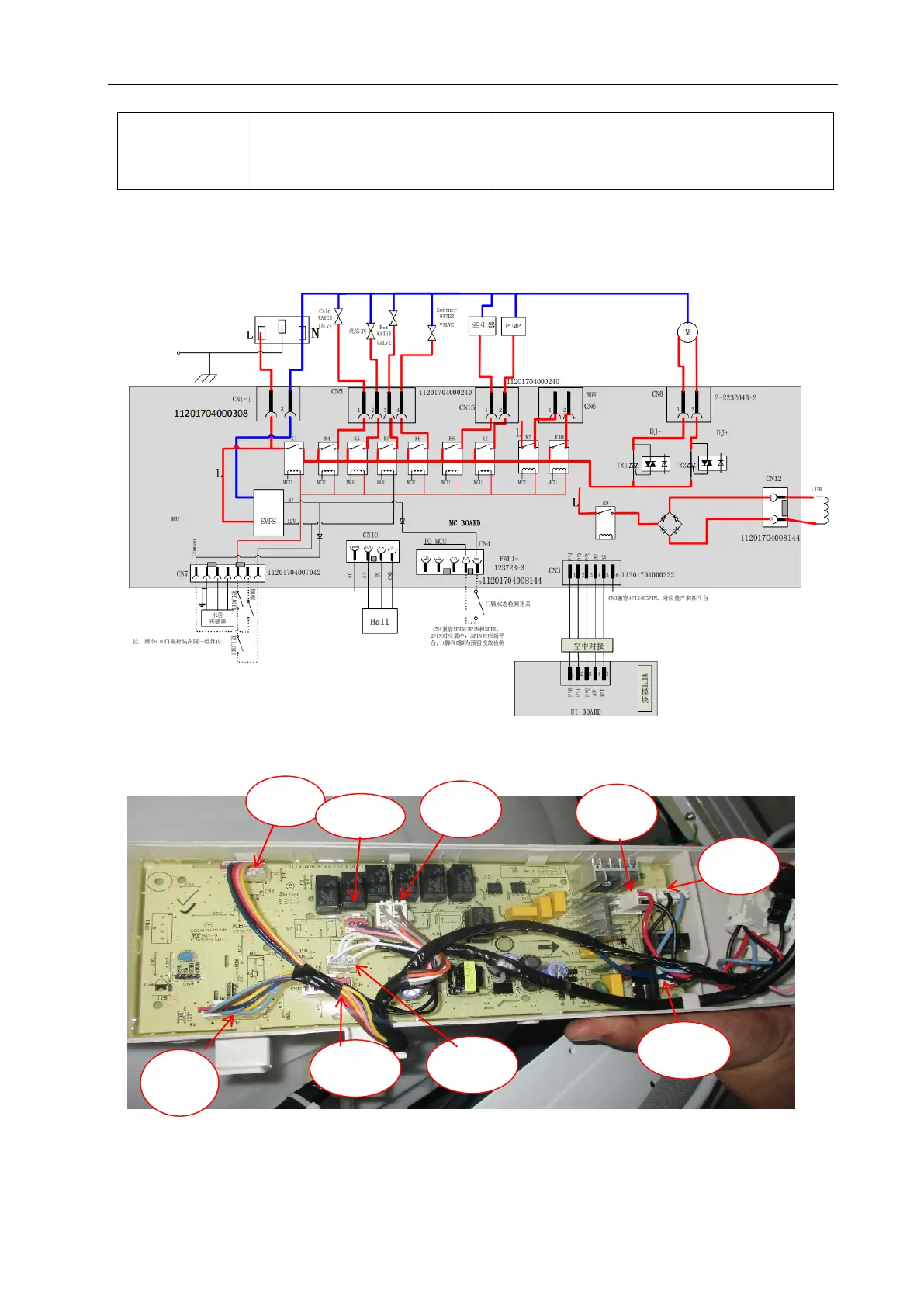

4.4 Wiring diagram and terminals
Wiring diagram Picture 1
Wiring diagram Picture 2
Port definition (Detail pin definition refer to Wiring diagram Picture 1)
CN7
CN3
CN14
CN15
5
CN5
CN8
CN1
CN12
CN10
