Outdoor Unit Disassembly 27
Procedure Illustration

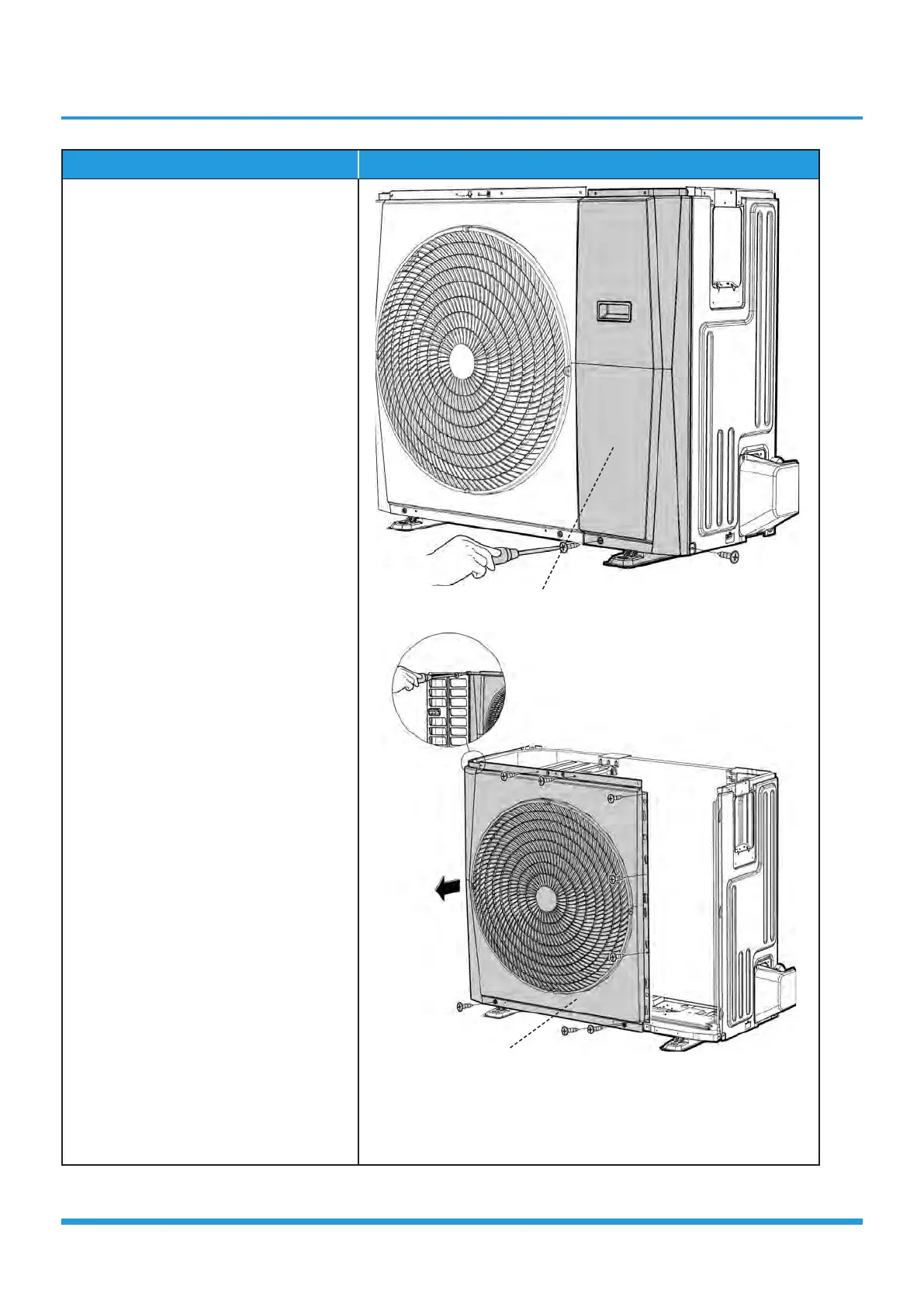

4) Remove the screws of the front right
panel and then remove the front right
panel (2 screws) (see CJ_D01_003).
5) Remove the screws of the front panel
and then remove the front panel (9
screws) (see CJ_D01_004).
CJ_D01_003
CJ_D01_004
Note: This section is for reference only. Actual unit appearance may vary.
Front Panel
Front Right Panel
To Next Page
