Outdoor Unit Disassembly 28
Procedure Illustration

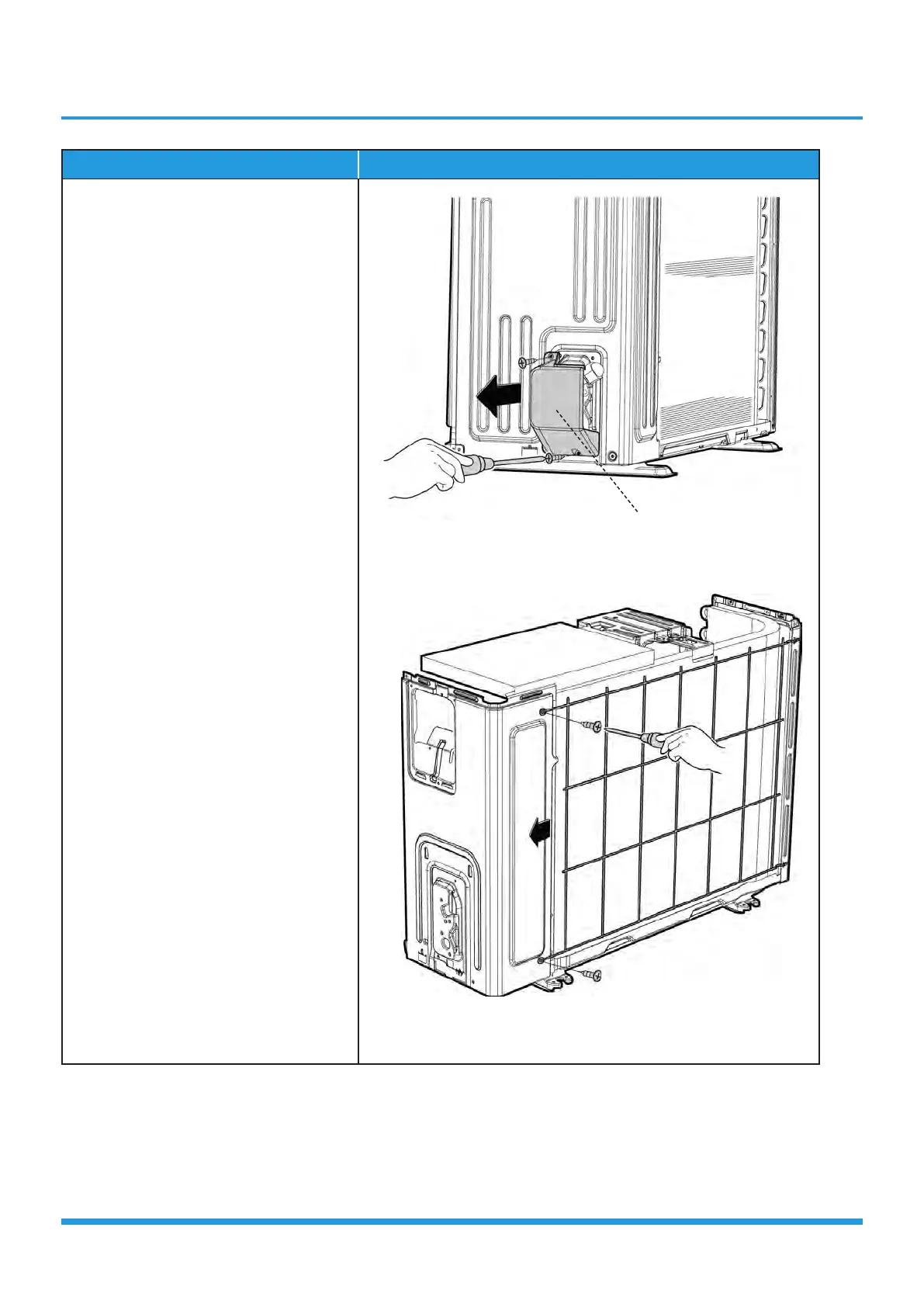

6) Remove the screws of water collecting
cover and then remove the water
collecting cover (2 screw) (see CJ_
D01_005).
7) Remove the screws of the rear net and
then remove the rear net (2 screws)
(see CJ_D01_006). (for some models)
CJ_D01_005
CJ_D01_006
Note: This section is for reference only. Actual unit appearance may vary.
Water Collecting Cover
To Next Page
