Midea Mono 3D User Manual

67

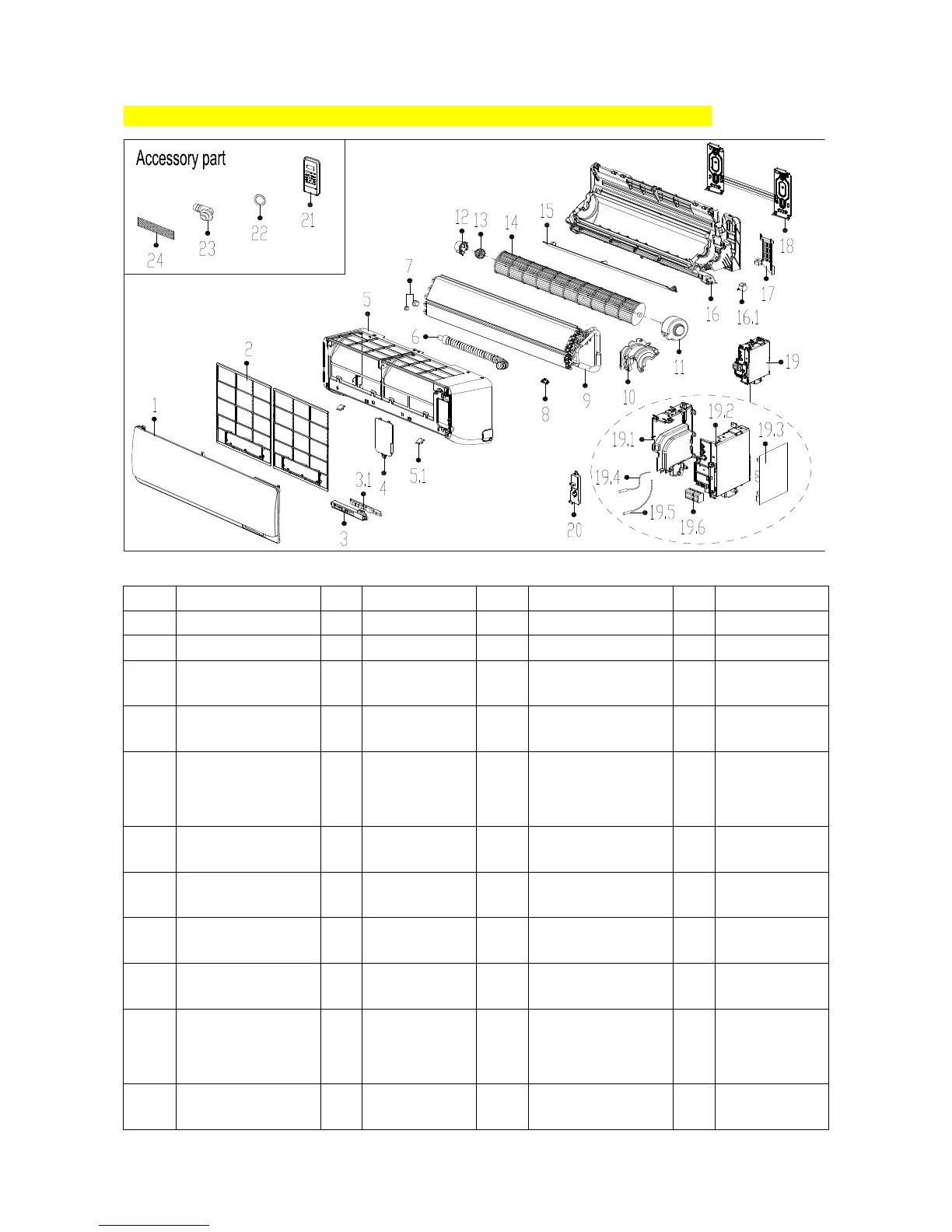

MS11M-12HRFN1-MV0W:
ONLY FOR STANDARD BOM, CUSTOMIZED FEATURE MAY CHANGE THE PART LIST
No.
Part Name
Qty
BOM Code
No.
Part Name
Qty
BOM Code
1
Panel assembly
1
201132590959
15
Horizontal louver
1
201132590956
2
Air filter
2
201132590962
16
Chassis assembly
1
201132590963
3
Display box
assembly
1
203332390972
16.1
Louver motor
1
202400200031
3.1
Display board
assembly
1
201332391249
17
Pipe clamp board
1
201119900949
4
Cover of indoor
electronic control
box
1
201119900948
18
Installation plate
1
201232590037
5
Panel frame
assembly
1
201132590958
19
Electronic control
box assembly
1
203332591105
5.1
Screw cap
2
201119900950
19.1
Electronic control
box I
1
201132490125
6
Drain hose
1
201101020038
19.2
Electronic control
box II
1
201132490139
7
Pipe nut
1
201600330003
19.3
Main control board
assembly
1
201332591013
7
Pipe nut
1
201600330001
19.4
Ambient
temperature sensor
assembly
1
202433190000
8
Fix clamp of
temperature sensor
1
201102000305
19.5
Pipe temperature
sensor assembly
1
202301300584
