Midea Mono 3D User Manual

73

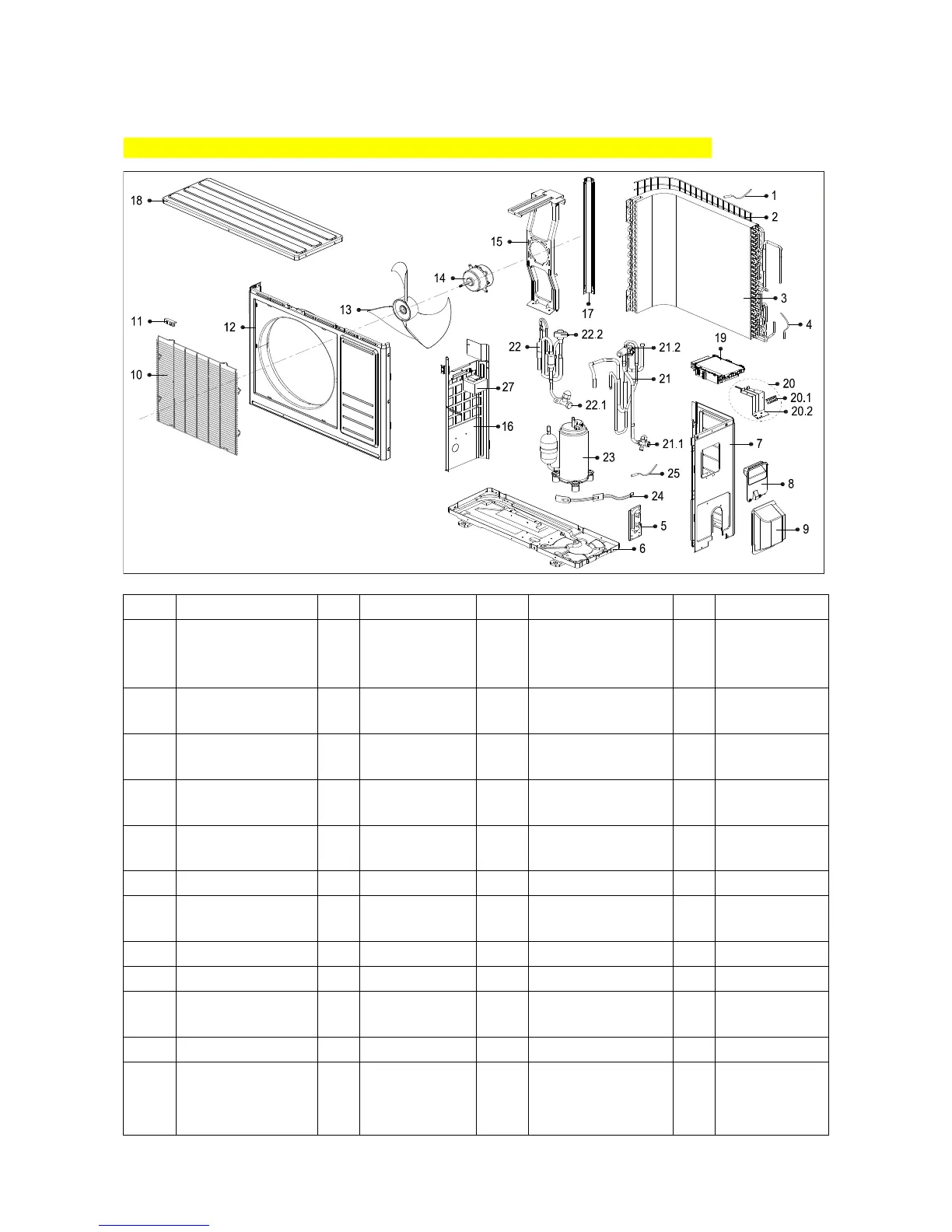

10.2 Outdoor unit
MOC-09HFN1-MW0W:
ONLY FOR STANDARD BOM, CUSTOMIZED FEATURE MAY CHANGE THE PART LIST
No.
Part Name
Qty
BOM Code
No.
Part Name
Qty
BOM Code
1
Ambient
temperature
sensor assembly
1
202301300115
17
Left supporter
1
201237400400
2
Rear net
1
2011374G0003
18
Top cover assembly
1
201237900028
3
Condenser
assembly
1
201537690004
19
Electronic control
box assembly
1
203337390226
4
Pipe temperature
sensor assembly
1
202440500004
20
Terminal board
assembly
1
203337590049
5
Valve plate
1
201237200282
20.1
Wire joint
1
202301400256
6
Chassis assembly
1
201237590091
20.2
Terminal board
1
201237590046
7
Rear right
clapboard
assembly
1
201237590080
21
4-Ways valve
assembly
1
201637391606
8
Big handle
1
201237390104
21.1
Gas valve
1
201600720095
9
Water collector
1
201137400000
21.2
4-Ways valve
1
201600690010
10
Air outlet grille
1
201237390105
22
Liquid valve
assembly
1
201637391145
11
Clamp of front net
6
201135110801
22.1
Liquid valve
1
201600740523
12
Front panel
1
201237400392
22.2
Electronic
expansion valve
assembly
1
201601300554
