11.2 Outdoor unit
MOC-09HFN1-MTOW, MOC-12HFN1-MTOW
No.
Part name
Procedures
Remarks
1
Panel plate
How to remove the panel
plate.

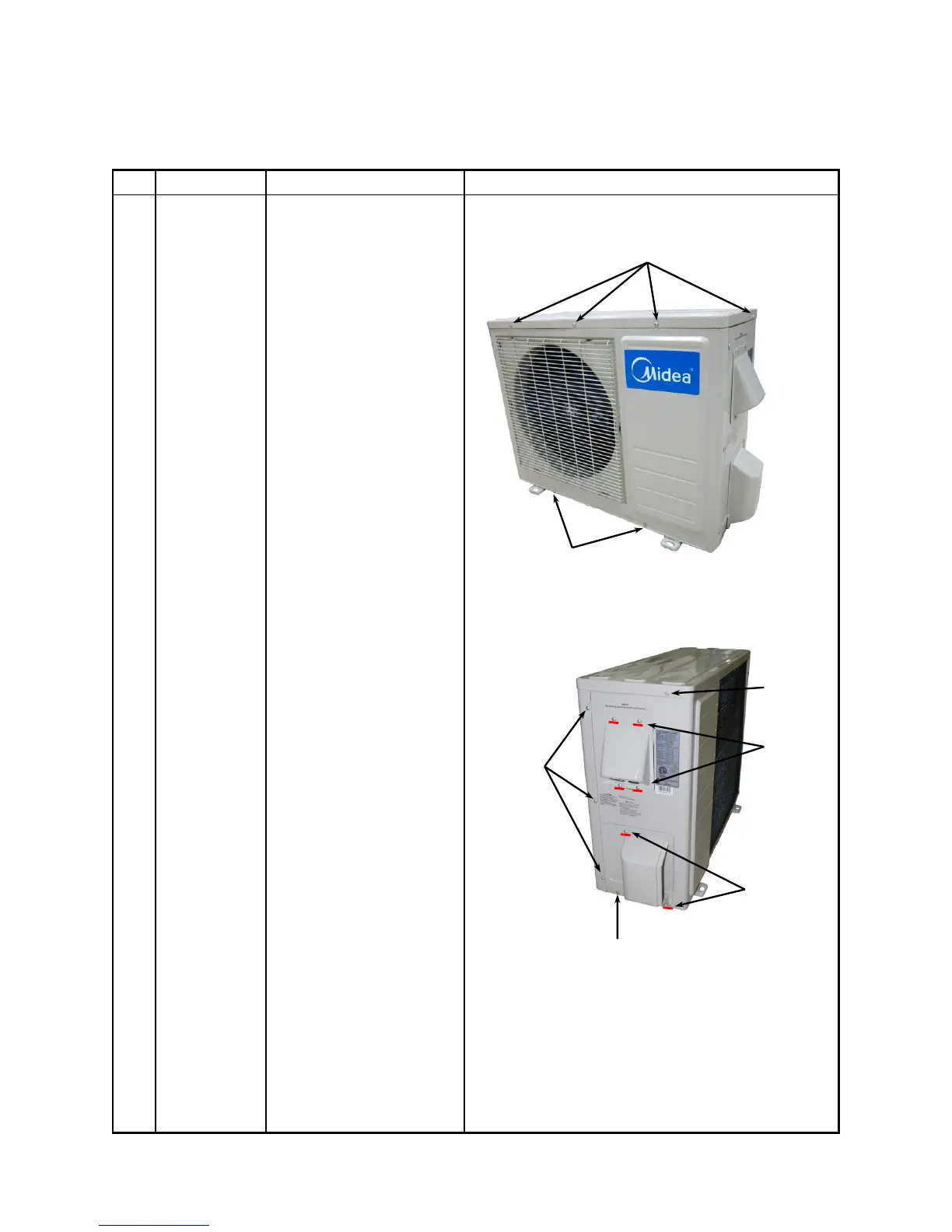

1) Stop operation of the
air conditioner and turn
“OFF” the power breaker.
2) Refer to the right side
photos, find out the fixing
screws of the panels.
3) Remove the screws of
top panel and remove the
top panel.
Screws of
water connector
on right side
plate
Screws of front panel
Screws of top panel
Screws of
front panel
Screw of
top panel
Screws of
big handle
on right
side plate.
Screw of right side plate
