Midea Mono 3D User Manual

82
2
Electrical
parts

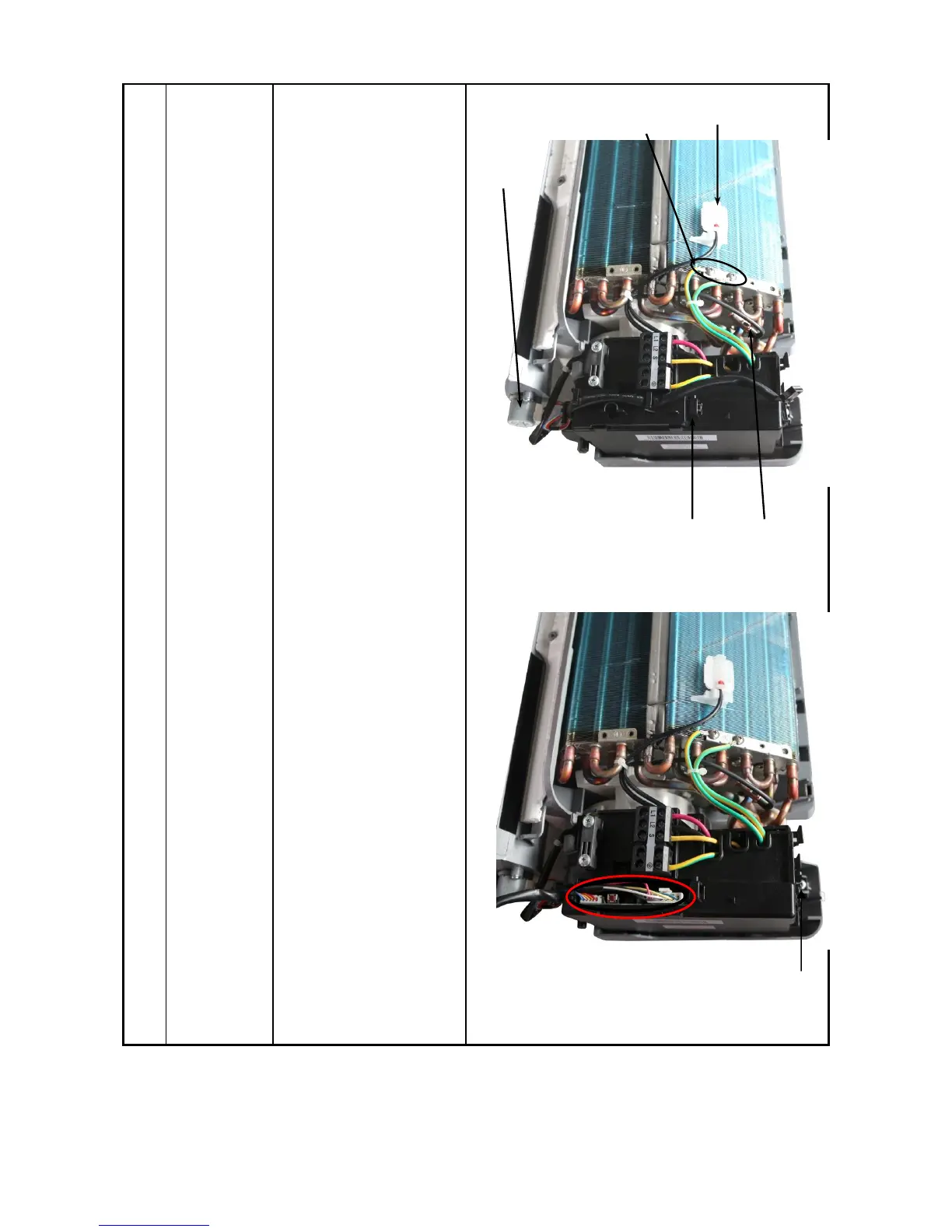

How to remove the
electrical parts.
1) After remove the
front panel from
procedure 1, pull out the
room temp. sensor and
evaporator coil sensor.
Remove the grounding
screws.
2) Pull out the clip
toward the left side and
open the cover.
3) Remove the fixing
screw and open the
electrical box cover.
.
4) Pull out the
connectors of the swing
motor and fan motor .
5) Remove the fixing
screw and then remove
the electronic control box
and air outlet ass’y.
Fixing screw
Swing motor
Fan motor connector
and swing motor
connector
Clip for electronic
control box cover
Grounding screws
Evaporator coil
temp. sensor
Room temp.
sensor
