GD Midea Refrigeration Equipment Co. Ltd Service manual for K portable Series
8

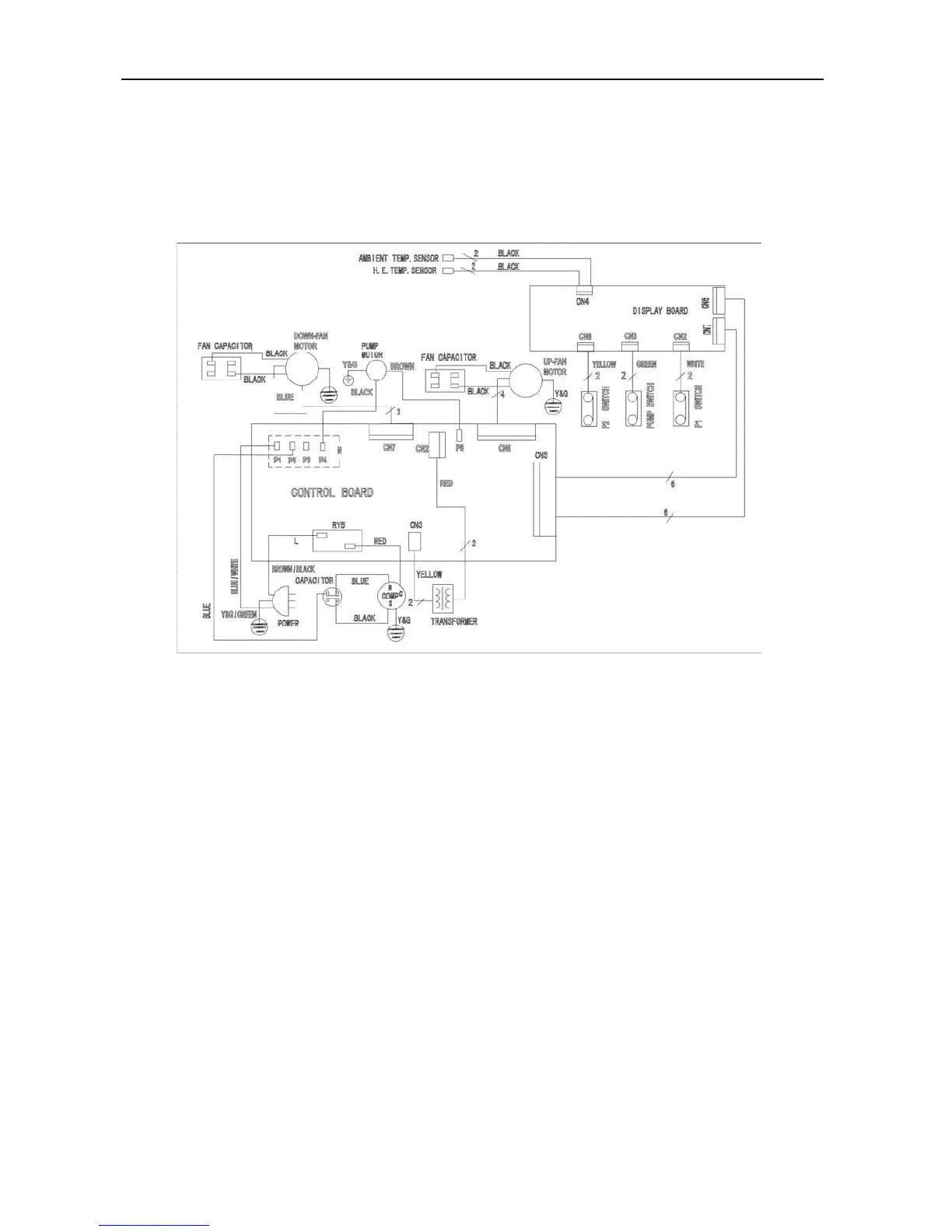

3 WIRING DIAGRAM
3.1 FOR COOLING ONLY MODELS:
MPK-09CEN2 MPK-09CRN2 MPK-08CE MPK-08CR
MPK-10CEN2 MPK-10CRN2 MPK-09CE MPK-09CR
MPK-12CEN2 MPK-12CRN2 MPK-10CE MPK-10CR
MPK2-09CEN1-QB6 MPK2-09CRN1-QB6 MPK2-10CEN1-QB6 MPK2-10CRN1-QB6
MPK2-12CEN1-QB4 MPK2-12CRN1-QB4 MPK2-12CE-QB6 MPK2-12CR-QB6
3. 2 FOR COOLING AND HEATING MODELS:
MPK-09EEN2 MPK-09ERN2 MPK-08EE MPK-08ER
MPK-10EEN2 MPK-10ERN2 MPK-09EE MPK-09ER
MPK-12EEN2 MPK-12ERN2 MPK-10EE MPK-10ER
MPK2-09EEN1-QB6 MPK2-09ERN1-QB6 MPK2-10EEN1-QB6 MPK2-10ERN1-QB6
MPK2-12EEN1-QB4 MPK2-12ERN1-QB4 MPK2-12EE-QB6 MPK2-12ER-QB6
