Service manual
5

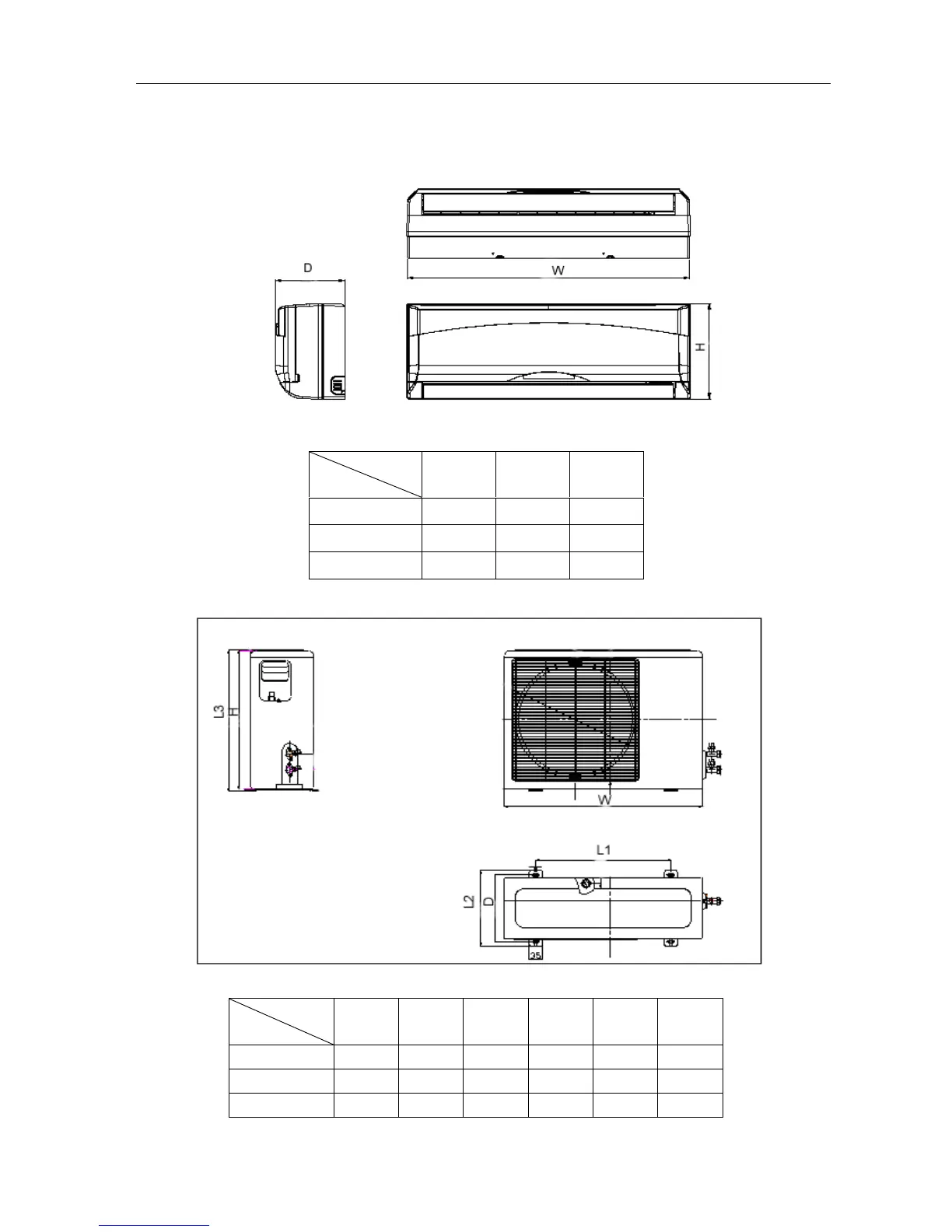

3. Dimension
3.1 Indoor
unit
3.2 Out
door
unit
Dimension
Mode
W H
D
21K 1080
330
225
24K 1080
330
225
28K 1080
330
225
Dimension
Mode
W H
D
L1
L2
L3
7K
845 695 335 560 360 560
9K
845 695 335 560 360 560
12K
845 695 335 560 360 560
8
10
Table of Contents
Default Chapter
2
Table of Contents
2
1 Precaution
5
Safety Precaution
5
Warning
5
2 Function
7
3 Dimension
9
Indoor Unit
9
Outdoor Unit
9
4 Specification
10
5 Refrigerant Cycle Diagram
10
6 Operation Limits
11
Cooling Operation
11
Heating Operation
11
7 Schematic Diagram and Wiring Diagram
12
Schematic Diagram
12
Wiring Diagram
14
8 Installation Details
16
Wrench Torque Sheet for Installation
16
Connecting the Cables
16
Pipe Length and the Elevation
16
Air Purging of the Piping and Indoor Unit
17
Pumping down (Re-Installation)
18
Re-Air Purging (Re-Installation)
19
Balance Refrigerant of the 2-Way, 3-Way Valves
20
Evacuation
21
Gas Charging
22
9 Pressure Table
23
Msc-21Crn1
23
Msc-21Hrn1
23
Msc-24Crn1
23
Msc-24Hrn1
23
Msc-28Crn1
24
Msc-28Hrn1
24
10 Capacity Table
25
Msc-21Crn1
25
Msc-21Hrn1
25
Msc-24Crn1
26
Msc-24Hrn1
26
Msc-28Crn1
27
Msc-28Hrn1
27
11 Electronic Function
28
Proper Symbols and Their Meaning
28
Function
28
Protection
28
Fan-Only Mode
29
Cooling Mode
29
Dehumidifying Mode
31
Heating Mode
31
Defrosting Mode(Available for Heating Mode)
33
Auto Mode
34
Force Cooling Function
34
Sleep Mode
34
Auto Restart Function
35
Turbo Mode
35
PLASMA ( Optional)
35
Anion( Optional)
35
12 Model and Parameters
36
13 Troubleshooting
37
Display Board
37
Detailed Malfunction Analyse
38
Malfunction Stat
40
14 Characteristic of Temperature Sensor
43
