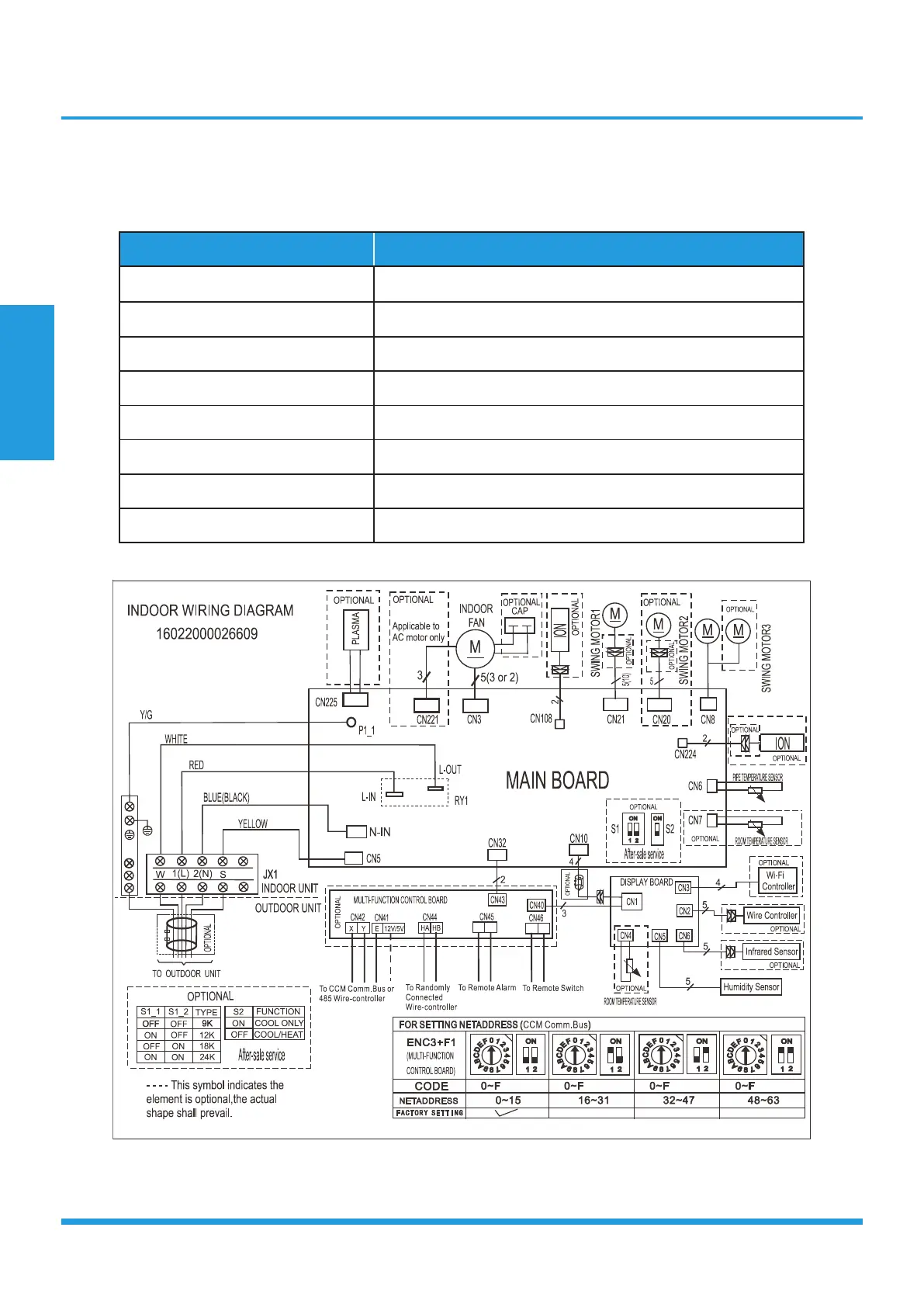

5. Electrical Wiring Diagrams
5.1 Indoor unit
Abbreviation Paraphrase
Y/G Yellow-Green Conductor
ION Positive and Negative Ion Generator
CAP Capacitor
PLASMA Electronic Dust Collector
L LIVE
N NEUTRAL
T1 Indoor Room Temperature
T2 Coil Temperature of Indoor Heat Exchanger
To Next Page
