Index 1:
1:Indoor or Outdoor DC Fan Motor(control chip is in fan motor)

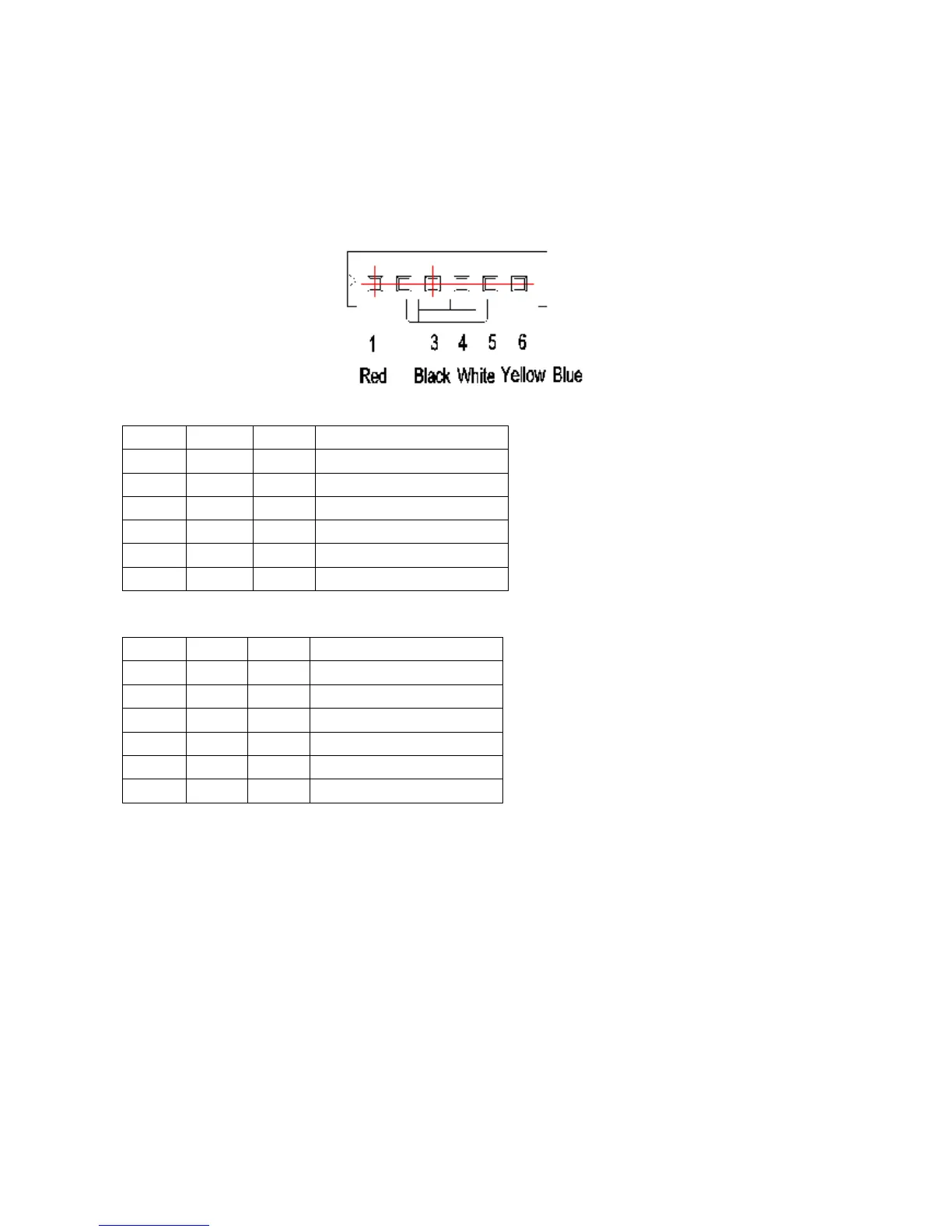

Power on and when the unit is in standby, measure the voltage of pin1-pin3, pin4-pin3 in fan motor
connector. If the value of the voltage is not in the range showing in below table, the PCB must has
problems and need to be replaced.
DC motor voltage input and output(voltage: 220-240V~)
NO. Color Signal
Voltage
1 Red Vs/Vm
280V~380V
2 --- --- ---
3 Black GND 0V
4 White Vcc 14-17.5V
5 Yellow
Vsp 0~5.6V
6 Blue FG 14-17.5V
DC motor voltage input and output(voltage :115V~)
NO. Color
Signal
Voltage
1 Red Vs/Vm
140V~190V
2 --- --- ---
3 Black
GND 0V
4 White
Vcc 14-17.5V
5 Yellow
Vsp 0~5.6V
6 Blue FG 14-17.5V
2. Outdoor DC Fan Motor (control chip is in outdoor PCB)
Power on ,and check if the fan can run normally, if the fan can run normally, the PCB must has
problems and need to be replaced, If the fan cant run normally, measure the resistance of each two
pins. If the resistance is not equal to each other, the fan motor must have problems and need to be
replaced, otherwise the PCB must has problems and need to be replaced.
3. Indoor AC Fan Motor
Power on and set the unit running in fan mode at high fan speed. After running for 15 seconds,
measure the voltage of pin1 and pin2. If the value of the voltage is less than 100V(208~240V power
