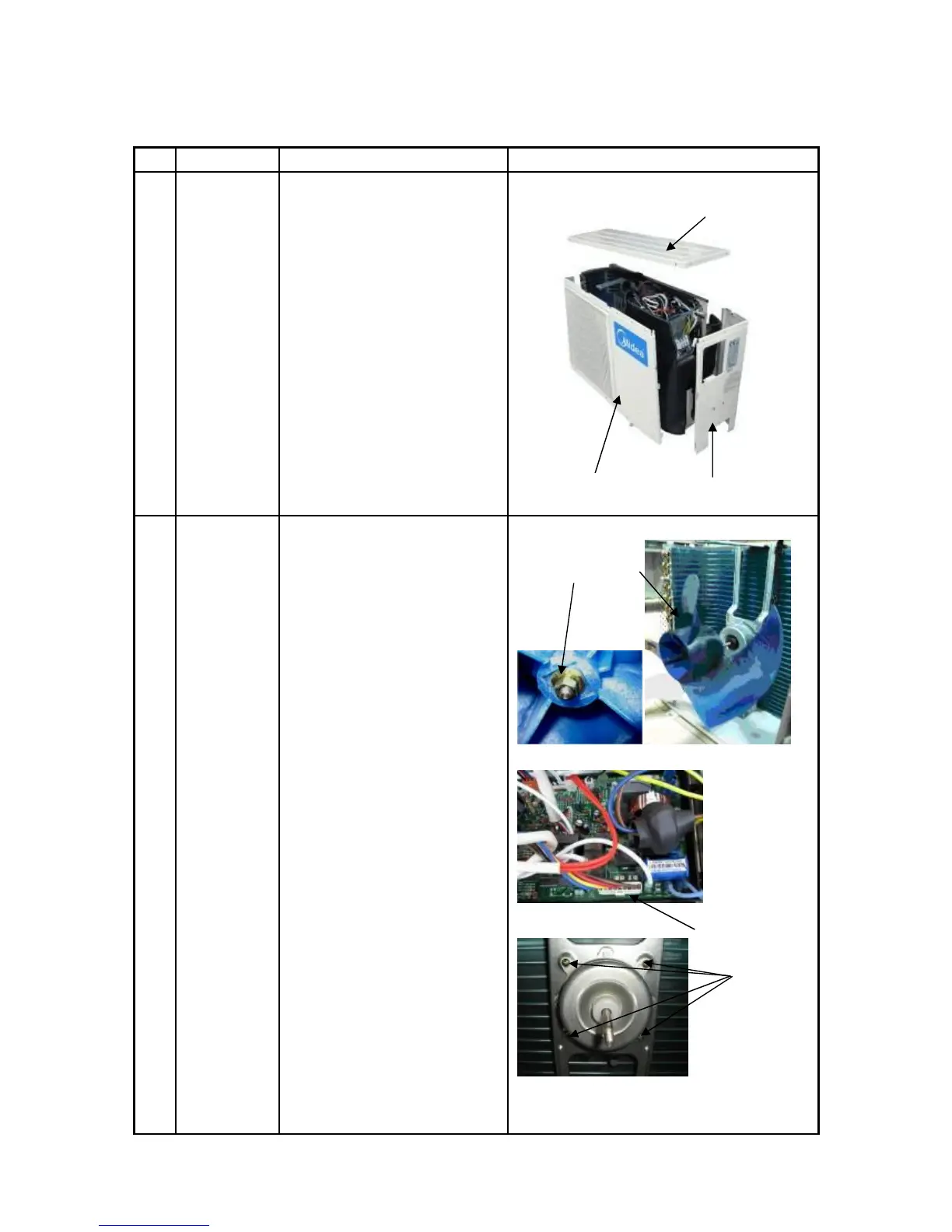

10.2 Outdoor unit
Ø MOB1-12CDN1-MP0W
No.
Part name Procedures Remarks
1 Panel plate
How to remove the panel plate.
1) Stop operation of the
air conditioner and turn “OFF”
the power breaker.
2) Remove the top
cover.(8 screws)
3) Remove the front
panel.(10 screws)
4) Remove the side
panel.(11 screws)
2 Fan ass’y
How to remove the fan ass’y.
1) Remove the panel
plate from procedure 1
2) Remove the hex nut
fixing the fan.
3) Remove the fan.
4) Disconnect the
connector for fan motor from
the electronic control board.
5) Remove the fixing
screws.(4 pcs)
6) Remove the fan motor.
⑤ 4screws
Side panel
Front panel
Top cover
②
④
③
