3 Electrical

parts

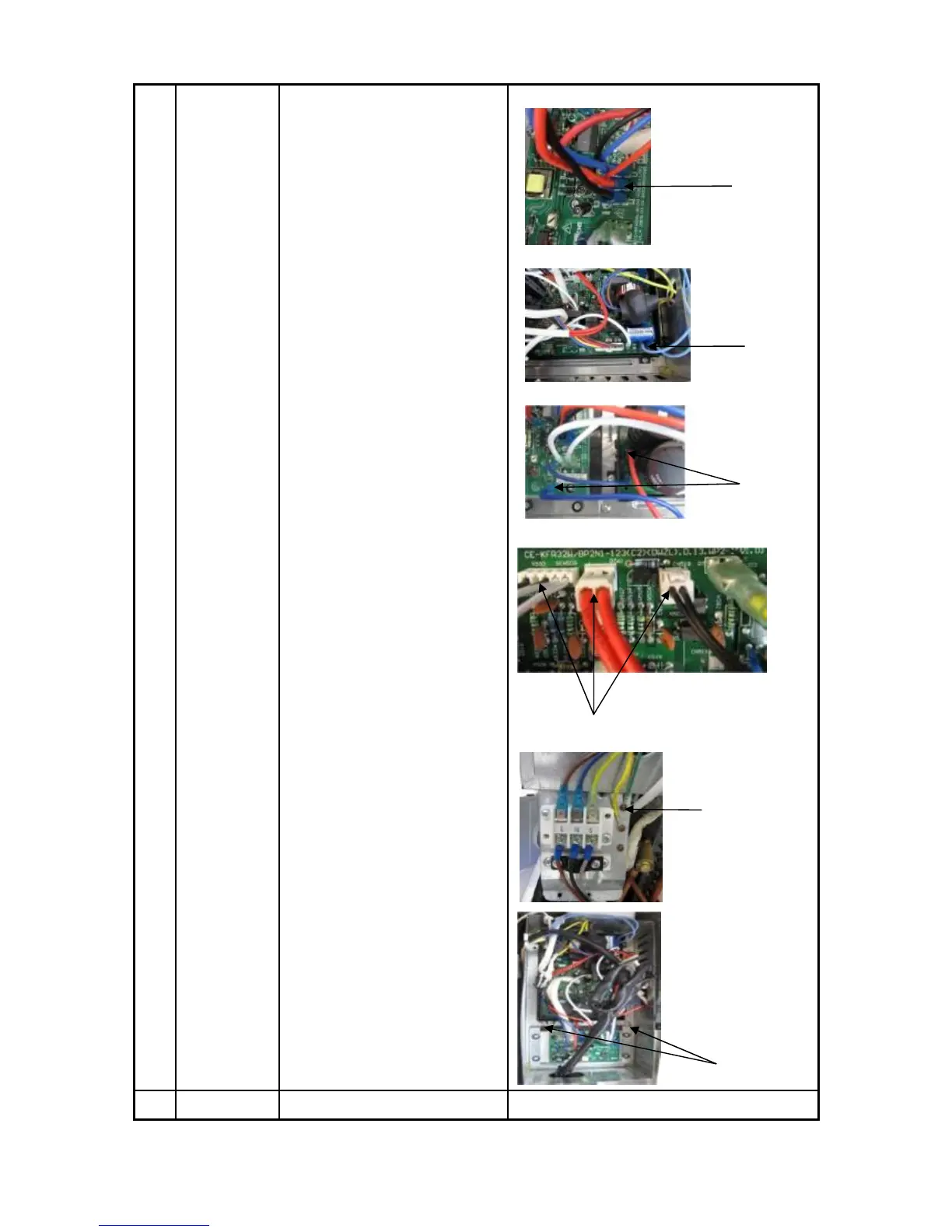

How to remove the electrical

parts.

1) Perform work of item

1,2.

2) Remove the wires

connected with the

compressor. (On the IPM )

3) Remove the wires

connected with 4-way valve.

4) Remove the red wire

connected with the capacitor

Remove the blue wire

connected with the reactor.

5) Remove the temp. sensor

connectors. Remove the

ground wire

of the compressor

6) Remove the two fixing

screws

7) Remove the electronic

control box.

4 Compressor

How to remove the

⑦

⑤

③

Two blue

wires

④

②

⑥
