parts.

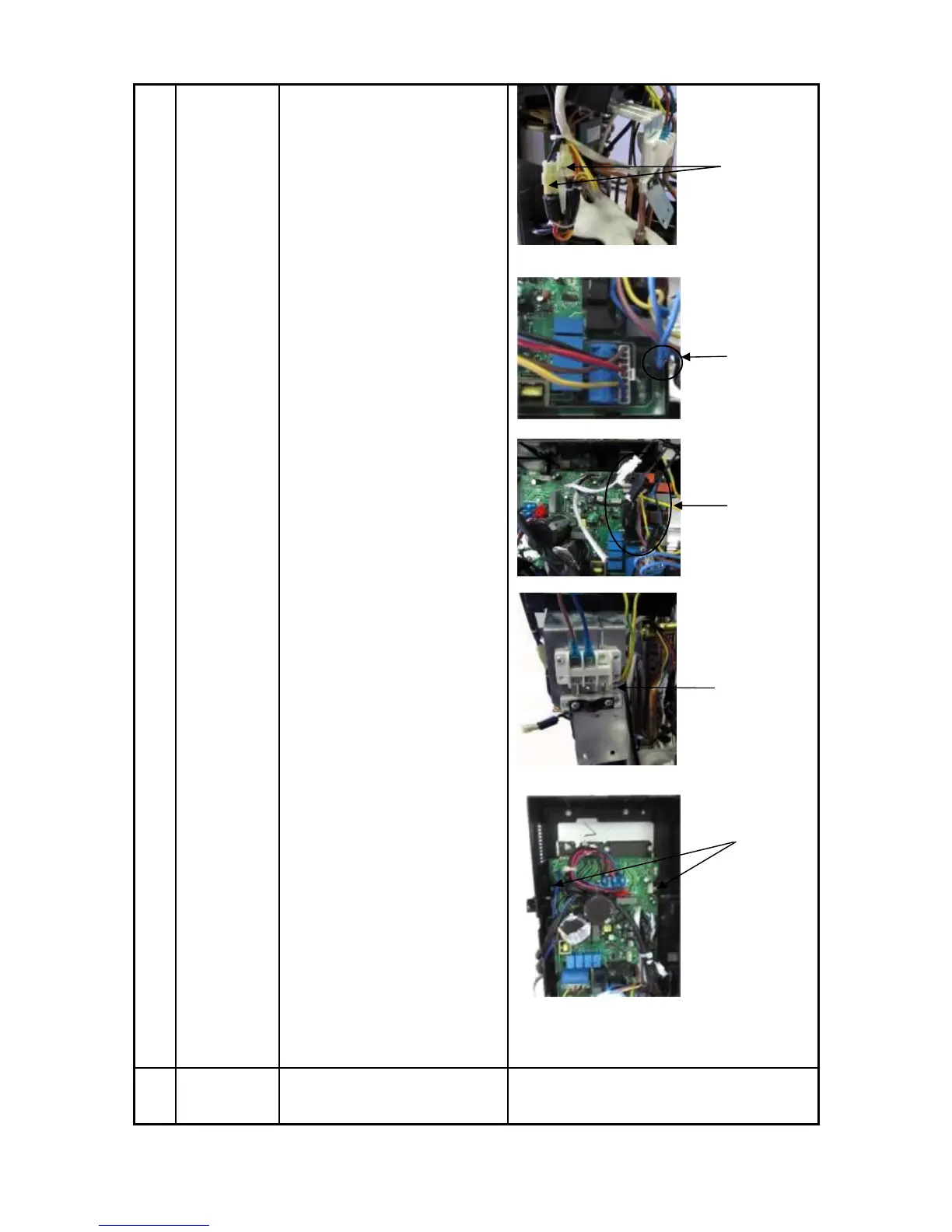

1) Perform work of item

1,2.

2) Remove the two

connectors for the compressor

and the reactors.

3) Remove two blue wires

connected with the four way

valve.

4) Remove the connectors

for the condenser coil temp.

sensor(T3),outdoor ambient

temp. sensor(T4) and

discharge temp. sensor(T5).

(two black connectors, one

white connector)

5) Remove the ground

wires .

6) Remove the fixing screws.

7) Remove the electronic

control box.

4 Compressor

How to remove the

compressor.

④

T3,T4,T5

③

②

⑥

two screws

⑤
