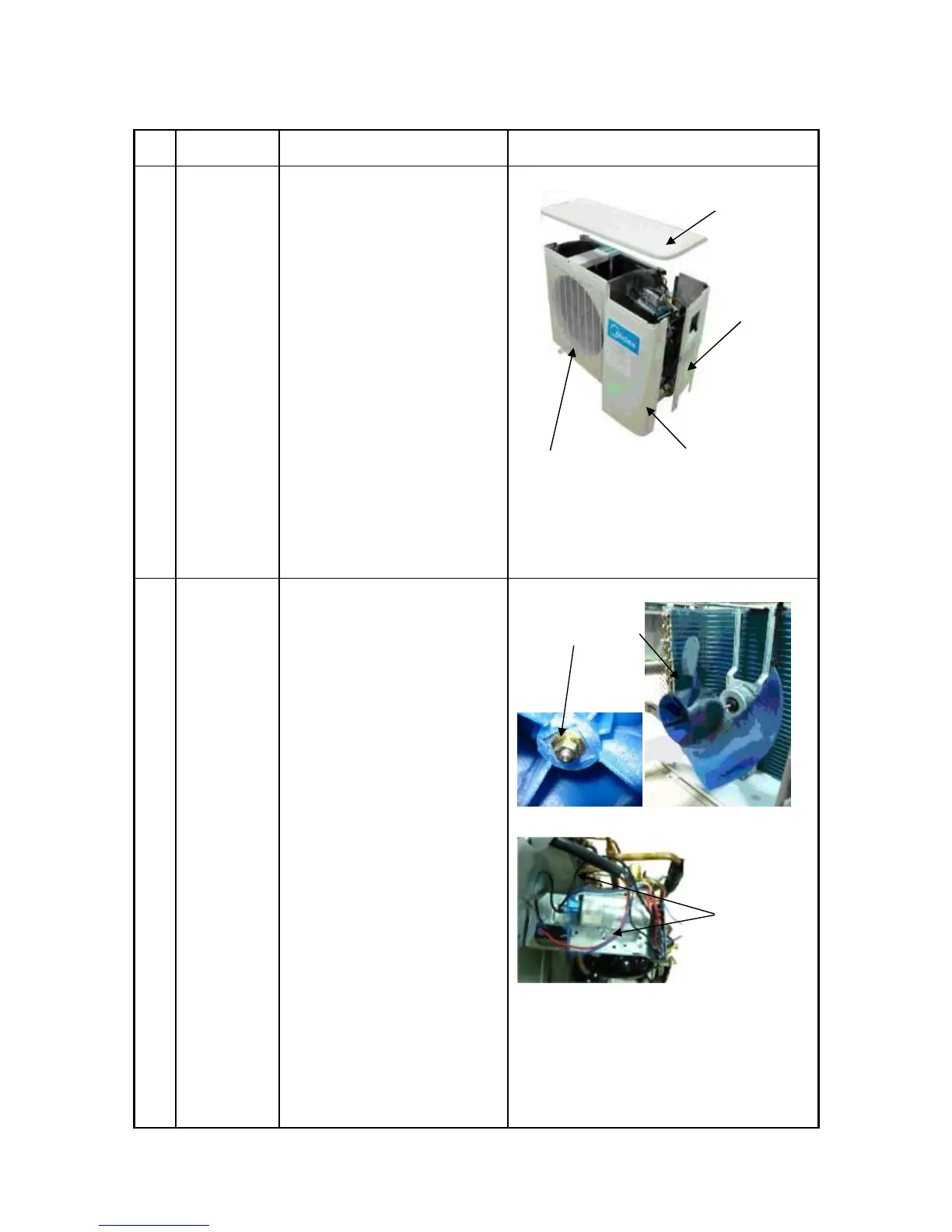

1) Stop operation of the
air conditioner and turn “OFF”
the power breaker.
2) Remove the top
cover.(9 screws)
3) Remove the front
panel.(2 screws)
4) Remove the side
panel.(10 screws)
5) Remove the air
outlet panel.(9 screws)
2
Fan ass’y How to remove the fan ass’y.
1) Remove the panel
plate from procedure 1.
2) Remove the hex nut
fixing the fan.
3) Remove the fan.
4) Disconnect the
connectors for fan motor from
the electronic control board.
(There are blue wire, red wire
and black wire. The blue wire
and red wire are on the
capacitor. The black wire is
connected with terminal four.)
5) Remove the fixing
screws.(3 pcs)
To Next Page
