Midea MUE-60HRFN1-MW - Ceiling-Floor Unit Installation

161

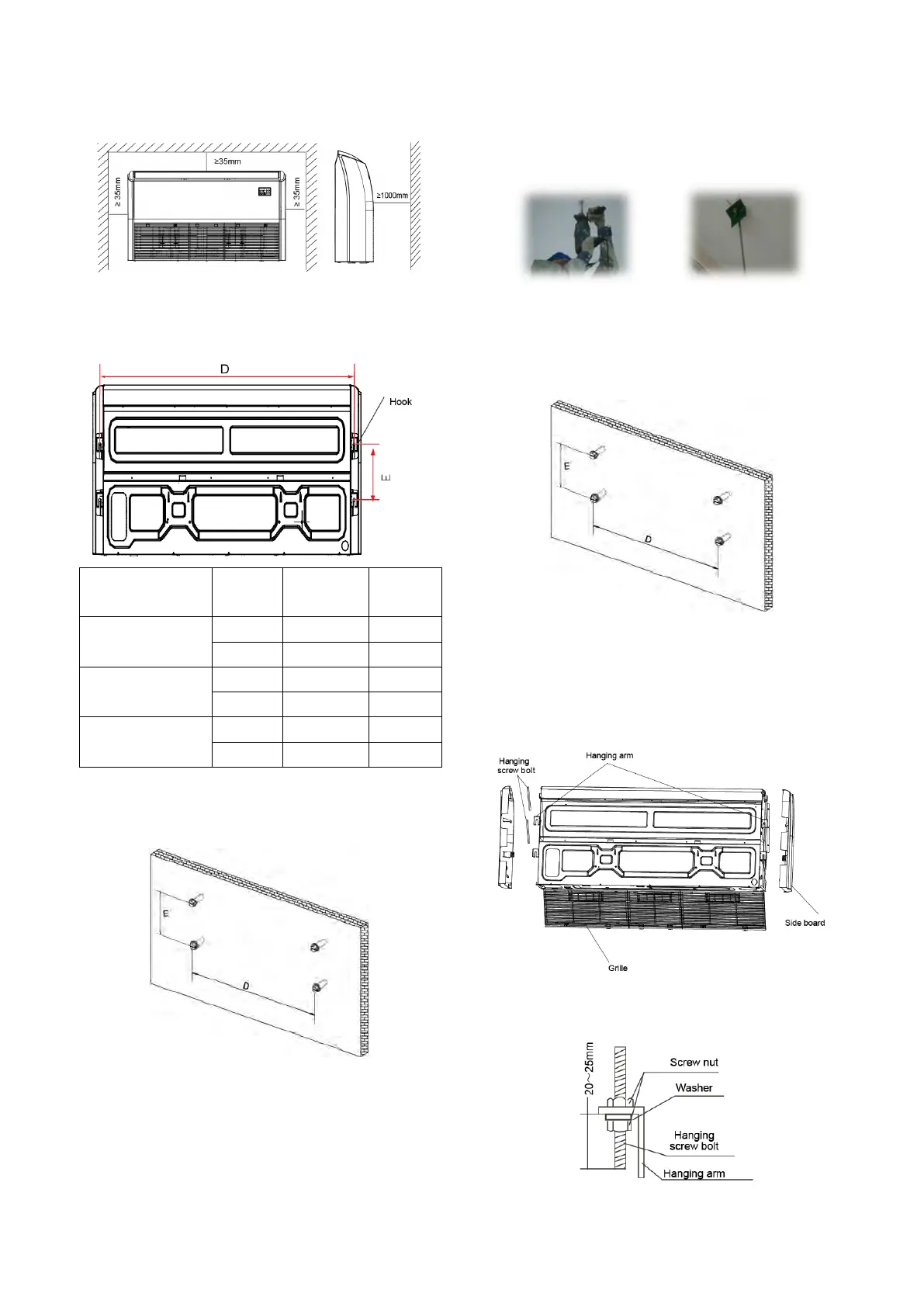

14.2.4 Ceiling-floor unit installation
14.2.4.1 Service space for indoor unit
14.2.4.2 Bolt pitch
① Ceiling installation
Capacity
(Btu/h)
Unit
D
E
18K / 24K
mm
983
220
inch
38.70
8.66
36K
mm
1200
220
inch
47.24
8.66
48K/60K
mm
1565
220
inch
61.61
8.66
② Wall-mounted installation
14.2.4.3 Install the pendant bolt
① Ceiling installation
Select the position of installation hooks
according to the hook holes positions showed
in upper picture.
Drill four holes of Ø12mm, 45~50mm deep at
the selected positions on the ceiling. Then
embed the expansible hooks (fittings).
② Wall-mounted installation
Install the tapping screws onto the wall.(Refer
to picture below)
14.2.4.4 Install the main body
① Ceiling installation (The only installation
method for the unit with drain pump)
Remove the side board and the grille.
Locate the hanging arm on the hanging screw
bolt. Prepare the mounting bolts on the unit.
Put the side panels and grilles back.
