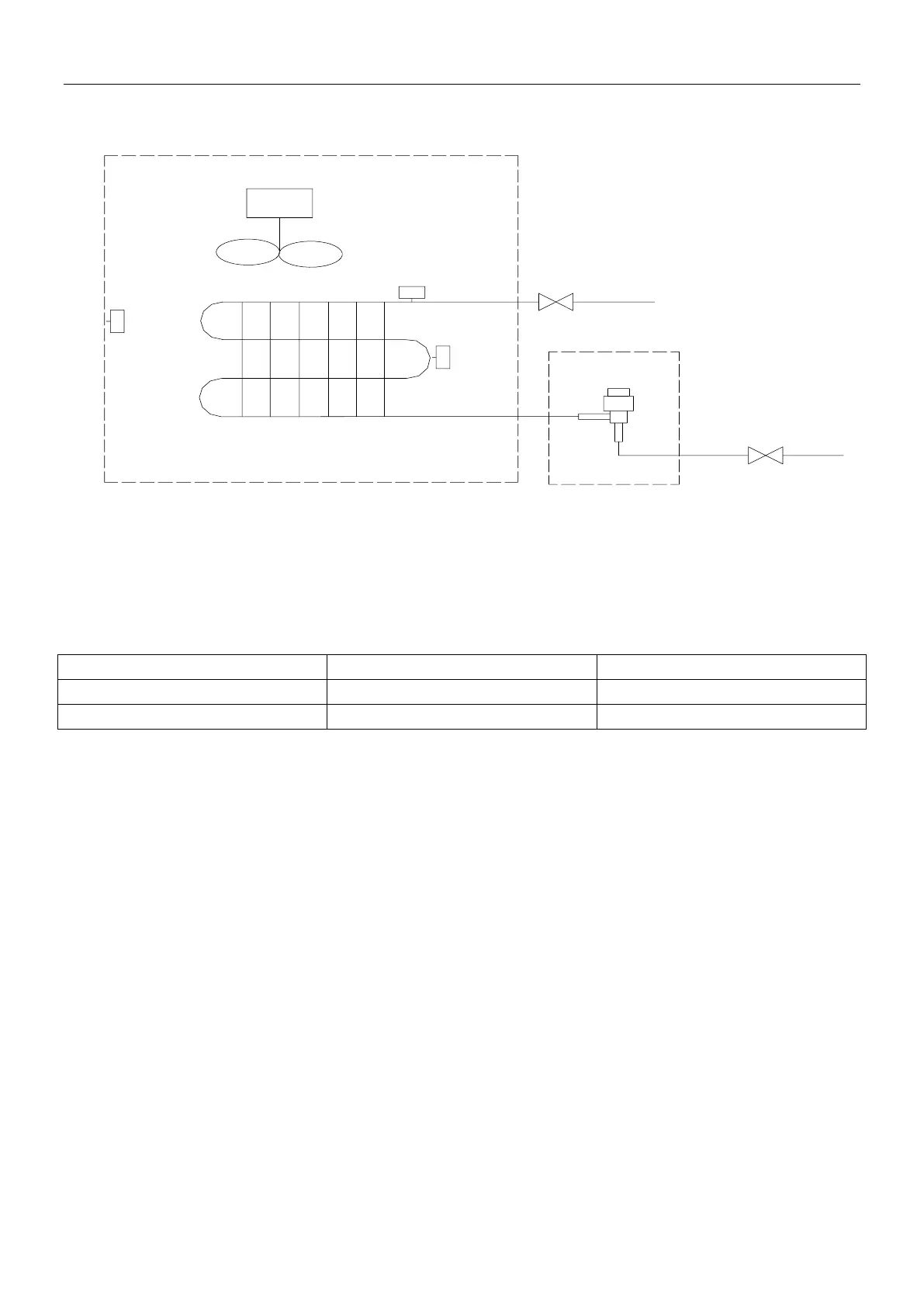

5. Piping diagrams
flare nut
flare nut
T2B
gas side
motor
heat exchanger
fan
EXV
liquid side
T2
T1
T1: Indoor ambient temperature sensor;
T2: Temperature sensor in the middle of evaporator;
T2B: Evaporator outlet temperature sensor.
 Refrigerant pipe connection port diameters
mm
Model
Gas pipe
Liquid pipe
2.8-4.5kW
12.7
Φ6.35
5.6-14kW
15.9
Φ9.53
