Midea One-way Cassette Series User Manual

MCAC-VTSM-2017-01 Four-way Cassette
64

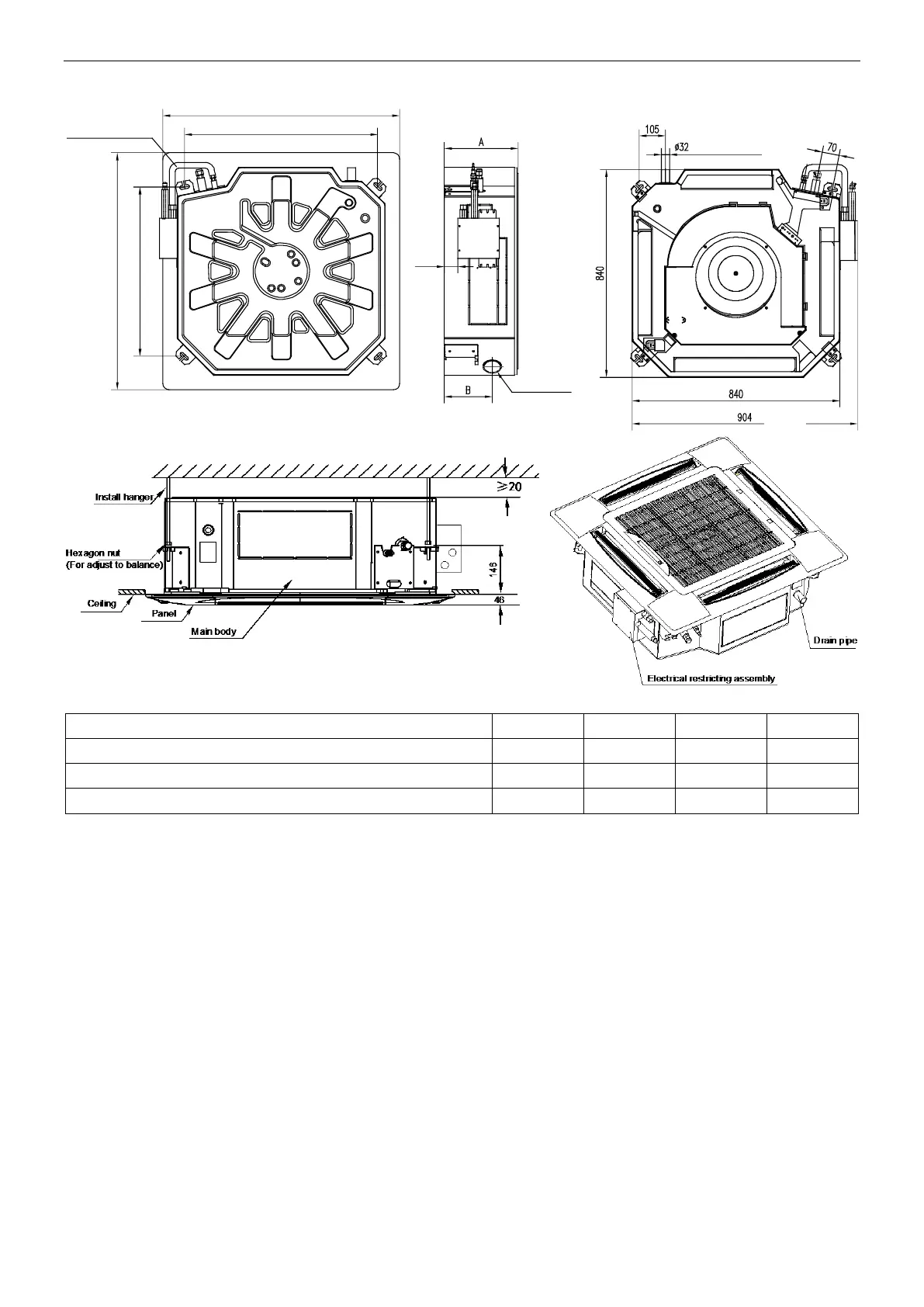

3. Dimensions
Indoor unit model
A(mm)
B(mm)
C(mm)
D(mm)
MDV-D28Q4/N1-D ～ MDV-D45Q4/N1-D
230
170
Φ6.35
Φ12.7
MDV-D56Q4/N1-D ～ MDV-D80Q4/N1-D
230
170
Φ9.53
Φ15.9
MDV-D90Q4/N1-D ～ MDV-D140Q4/N1-D
300
190
Φ9.53
Φ15.9
The connective pipe
of restricted assembly
(accessories)
Φ75New air
supply orifice
Drain pipe outter diameter
55
950
780
950
680
