R410A DC Inverter VRF V4 Plus W Series 50Hz MCAC-VTSM-2016-04
192 Installation

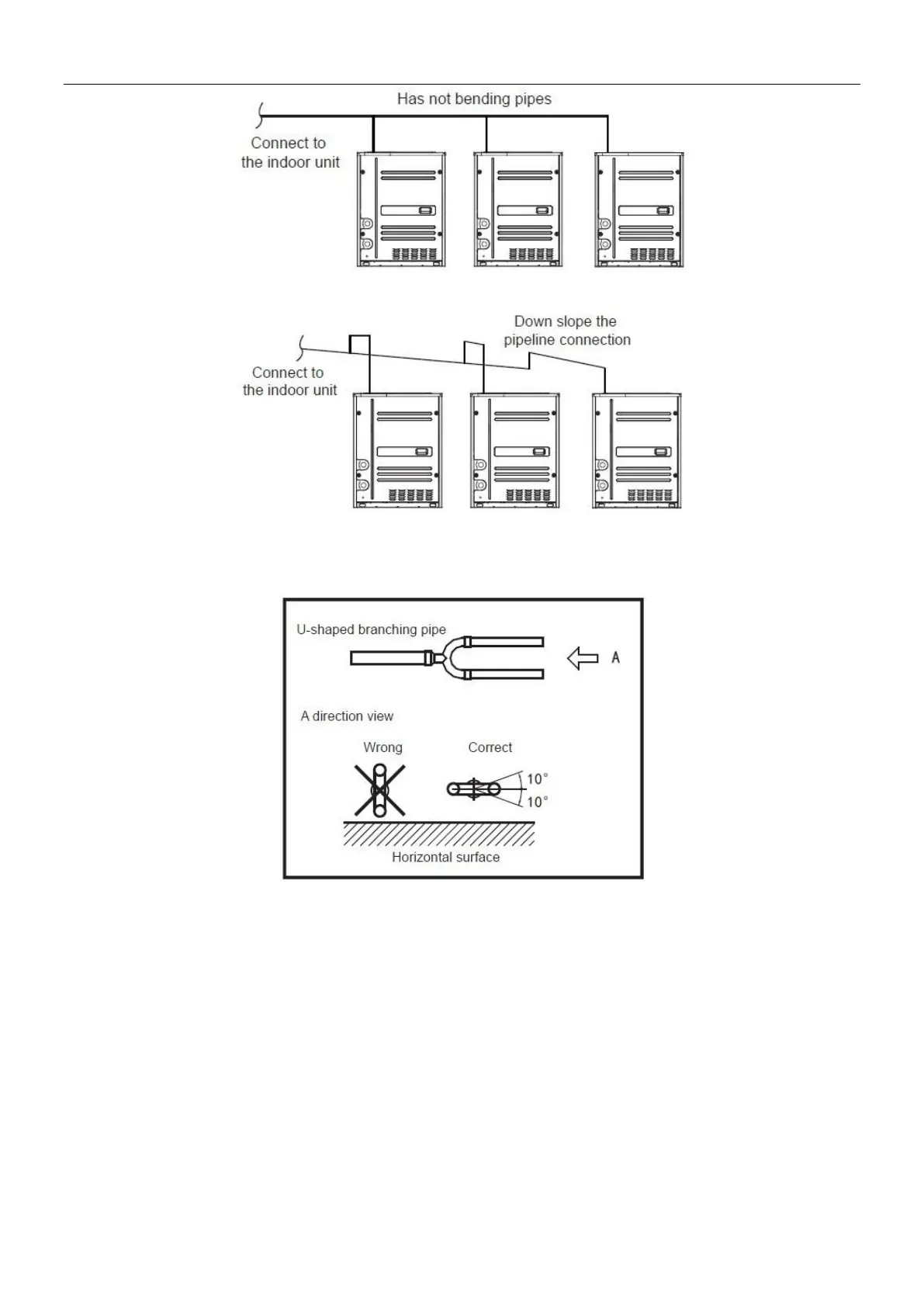

× Wrong Way
× Wrong Way
3) The branching pipe must be installed horizontally, error angle of it should not large than 10°. Otherwise,
malfunction will be caused.
