Midea V6-i Series User Manual

V6-i VRF 50Hz
25
Part 2
-
Outdoor Unit
Engineering Data
3 Installation Space Requirements
For single unit installation

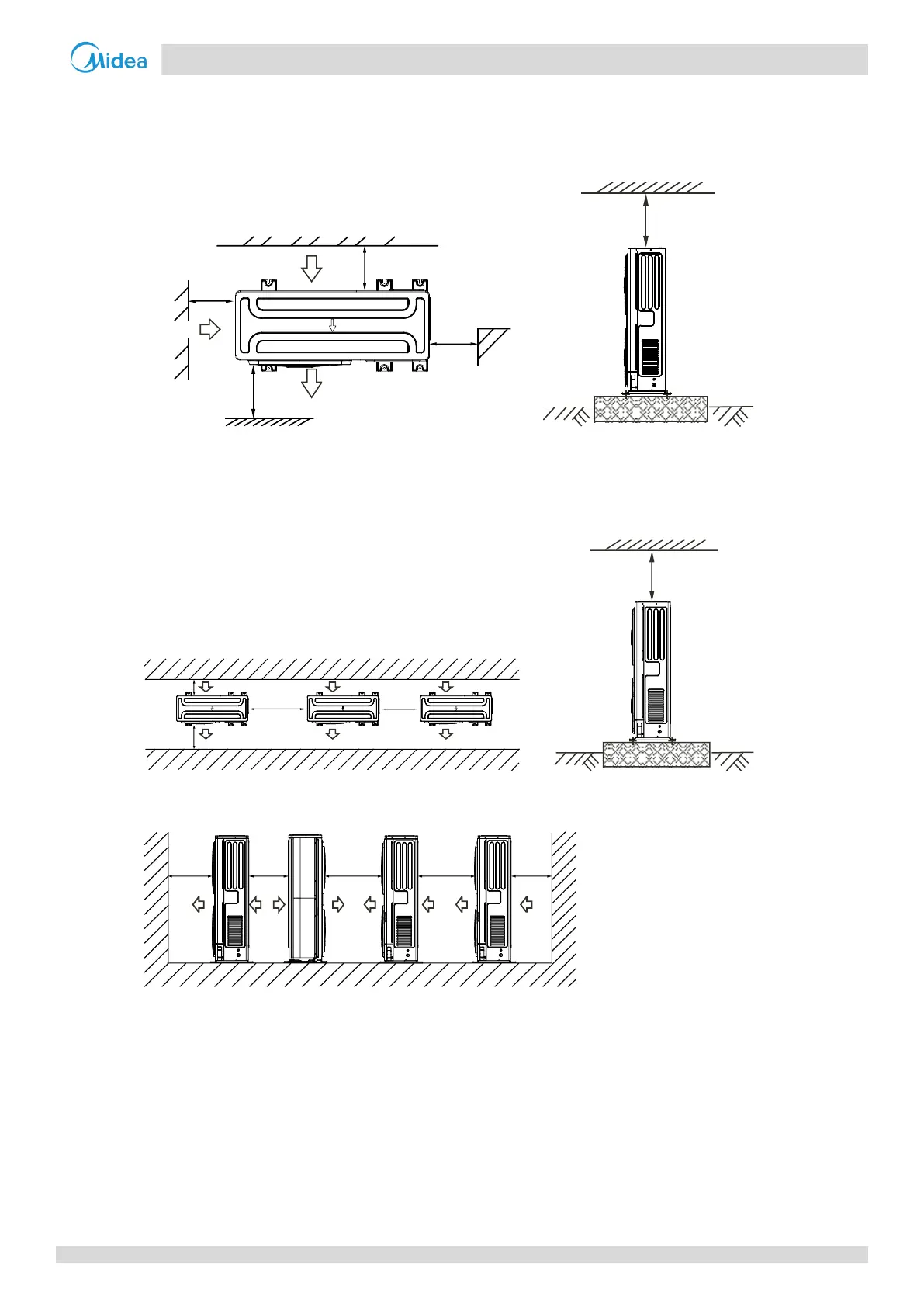

Figure 2-3.1: Single unit installation (unit: mm)
For single-row installation
Figure 2-3.3: Parallel connect the two units or above (unit: mm)
Figure 2-3.4: Parallel connect the front with rear sides (unit: mm)
>300
>600
>
300
>
3000
(Wall or obstacle)
Maintain the electric
wire and pipeline
Air outlet
Air inlet
Air inlet
>60 0
>600
>3000
>300
>600
>60 0
>3000 >1000
>6000
>4000 >300
