VC Pro VRF 50/60Hz
33
Part 2 - Outdoor Unit Engineering Data
18/20/22HP

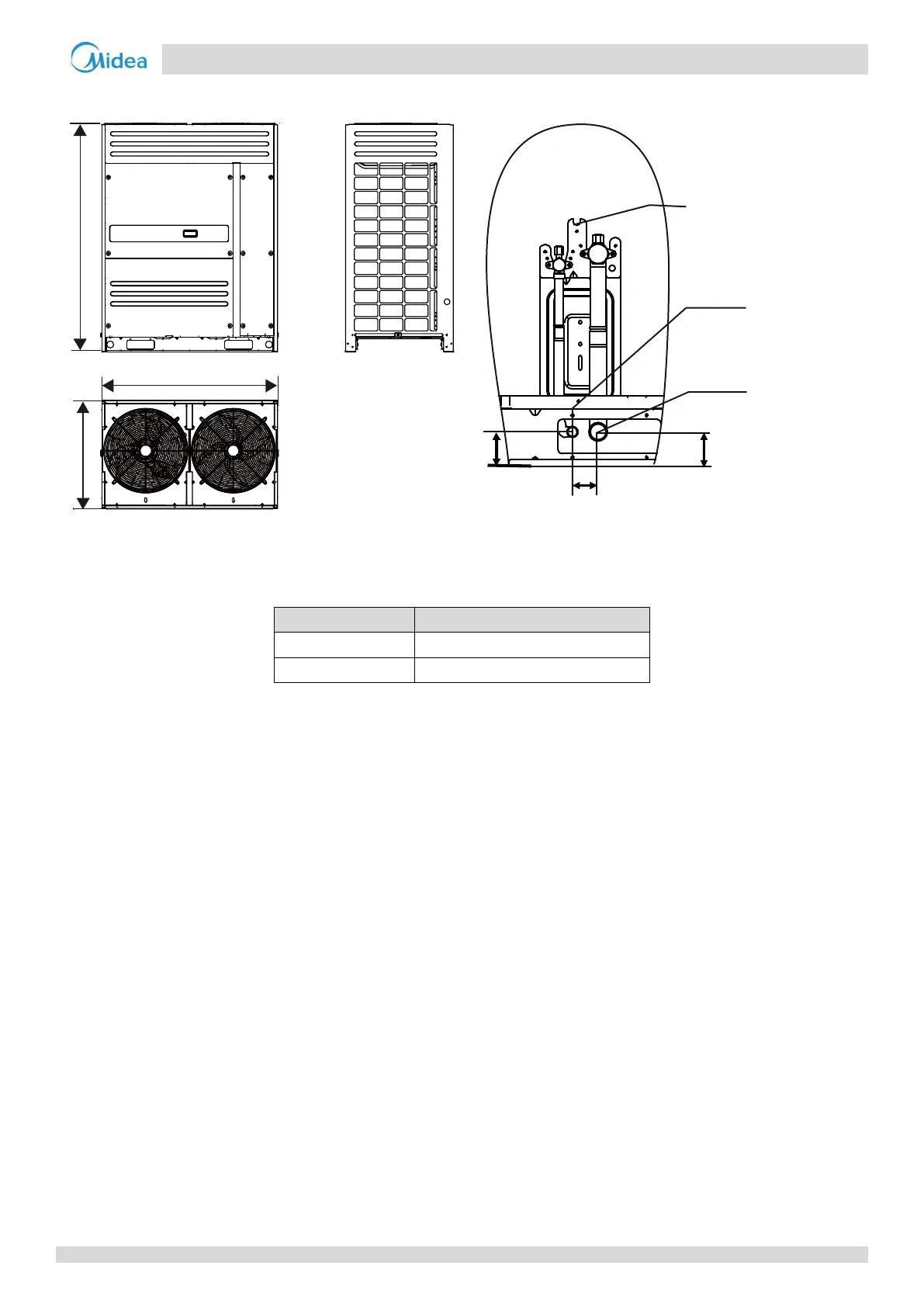

Figure 2-2.2: 18/20/22HP dimensions (unit: mm)
Detail R
Table 2-2.2: 18/20/22HP connection piping diameter (unit: mm)
Size
18-22HP
A
Φ19.1
B
Φ31.8
1250
765
1615
60
45
60
Check port (used to measure
system pressure, charge
refrigerant and vacuumize)
Liquid pipe
connection
port (ΦA)
Gas pipe
connection
port (ΦB)
