VC Pro VRF 50/60Hz
34
24/26/28/30HP

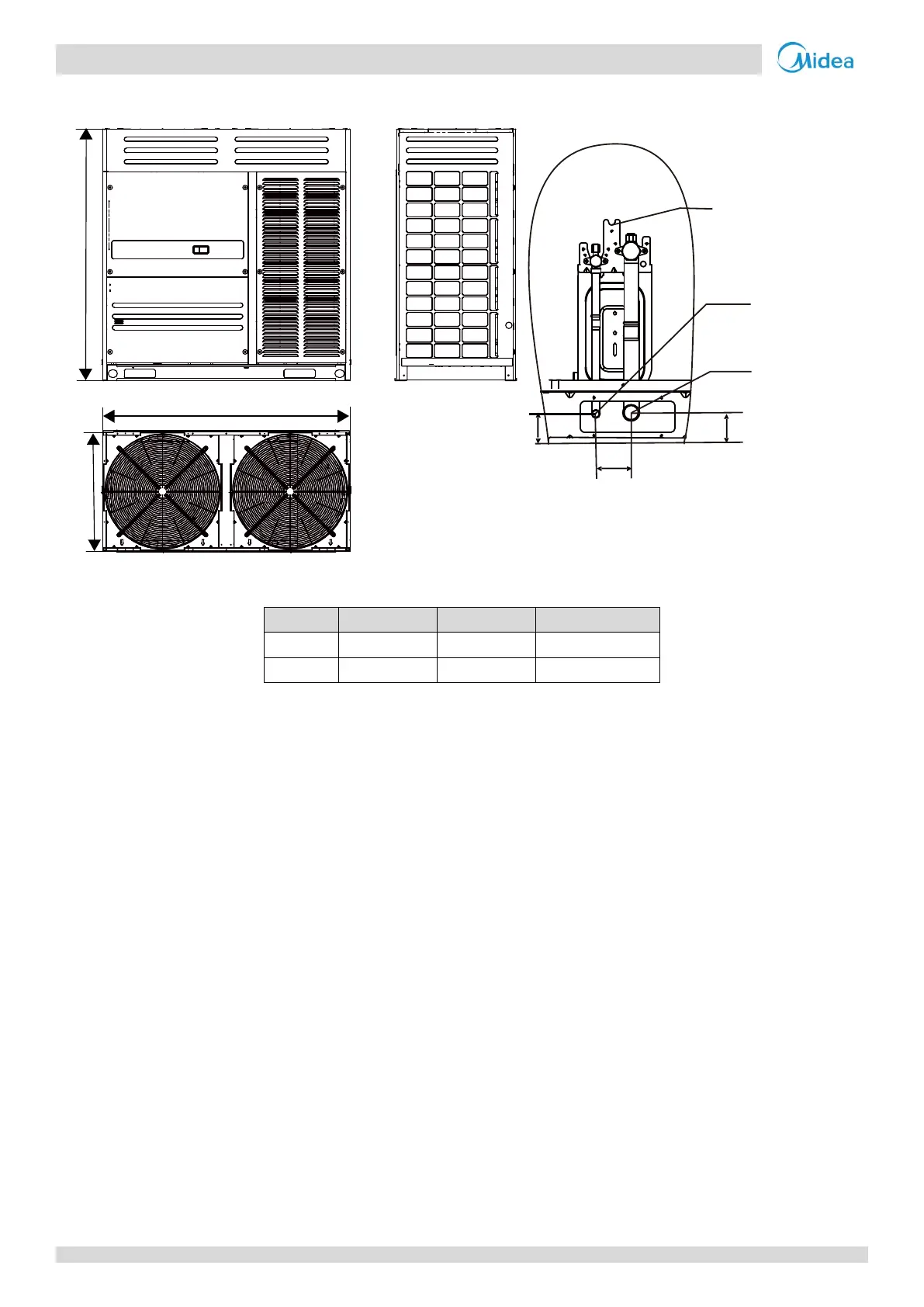

Figure 2-2.3: 24/26/28/30HP dimensions (unit: mm)
Detail R
Table 2-2.3: 24/26/28/30HP connection piping diameter (unit: mm)
Size
24HP
26HP
28-30HP
A
Φ19.1
Φ22.2
Φ22.2
B
Φ31.8
Φ31.8
Φ38.1
1615
765
1585
Check port (used to measure
system pressure, charge
refrigerant and vacuumize)
63
74
64
Liquid pipe
connection
port (ΦA)
Gas pipe
connection
port (ΦB)
