Part 2 - Outdoor Unit Engineering Data
2.2 Combinations of Units
32HP

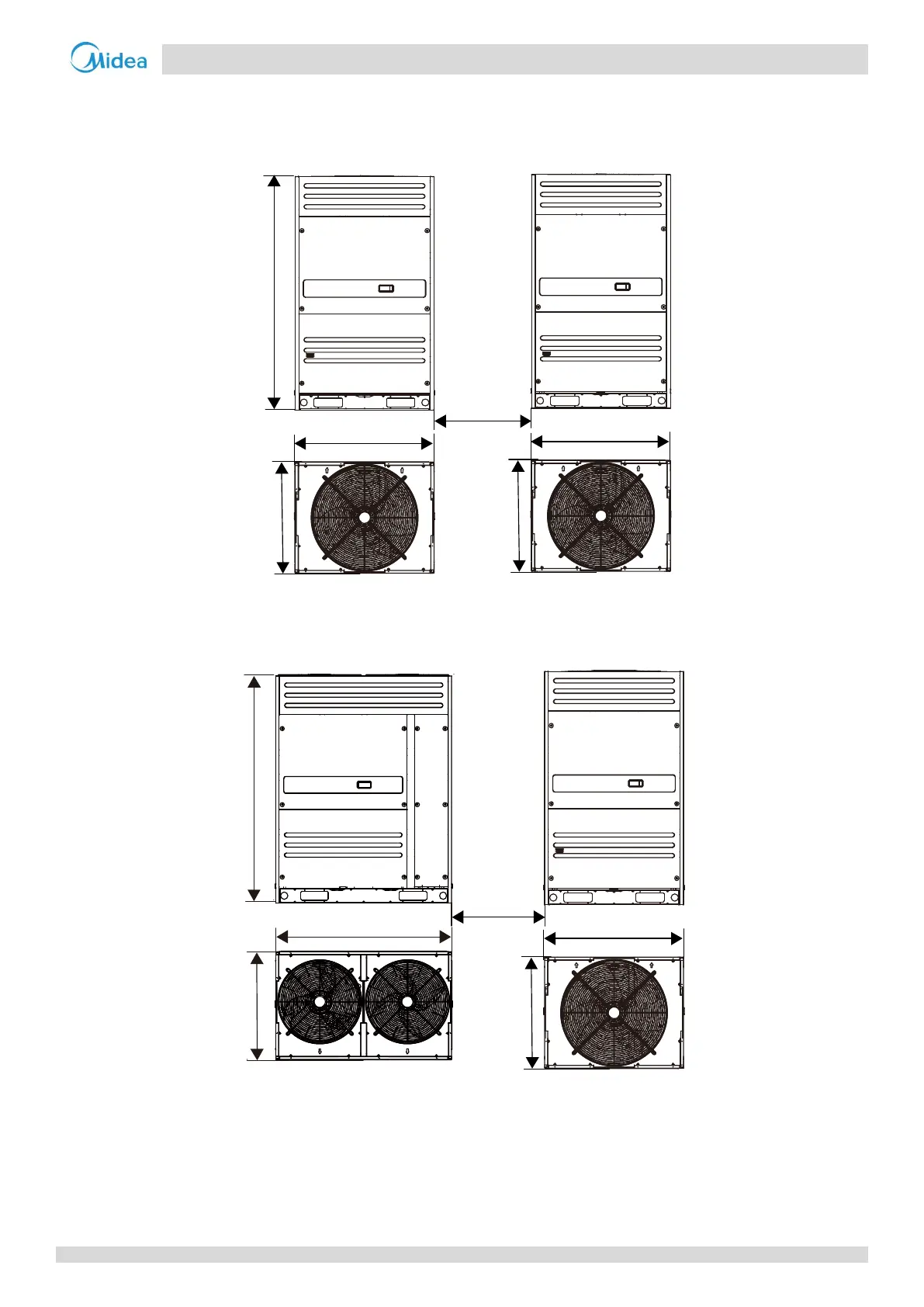

Figure 2-2.4: 32HP dimensions (unit: mm)
34/36/38HP
Figure 2-2.5: 34/36/38HP dimensions (unit: mm)
1615
960
765
960
765
200-500
Outdoor unit 1 Outdoor unit 2
Outdoor unit 1
1250
765
1615
960
765
200-500
Outdoor unit 2
