Midea VRF Service Manual

Compact Four-way Cassette MCAC-VTSM-2016-05
46 Indoor unit

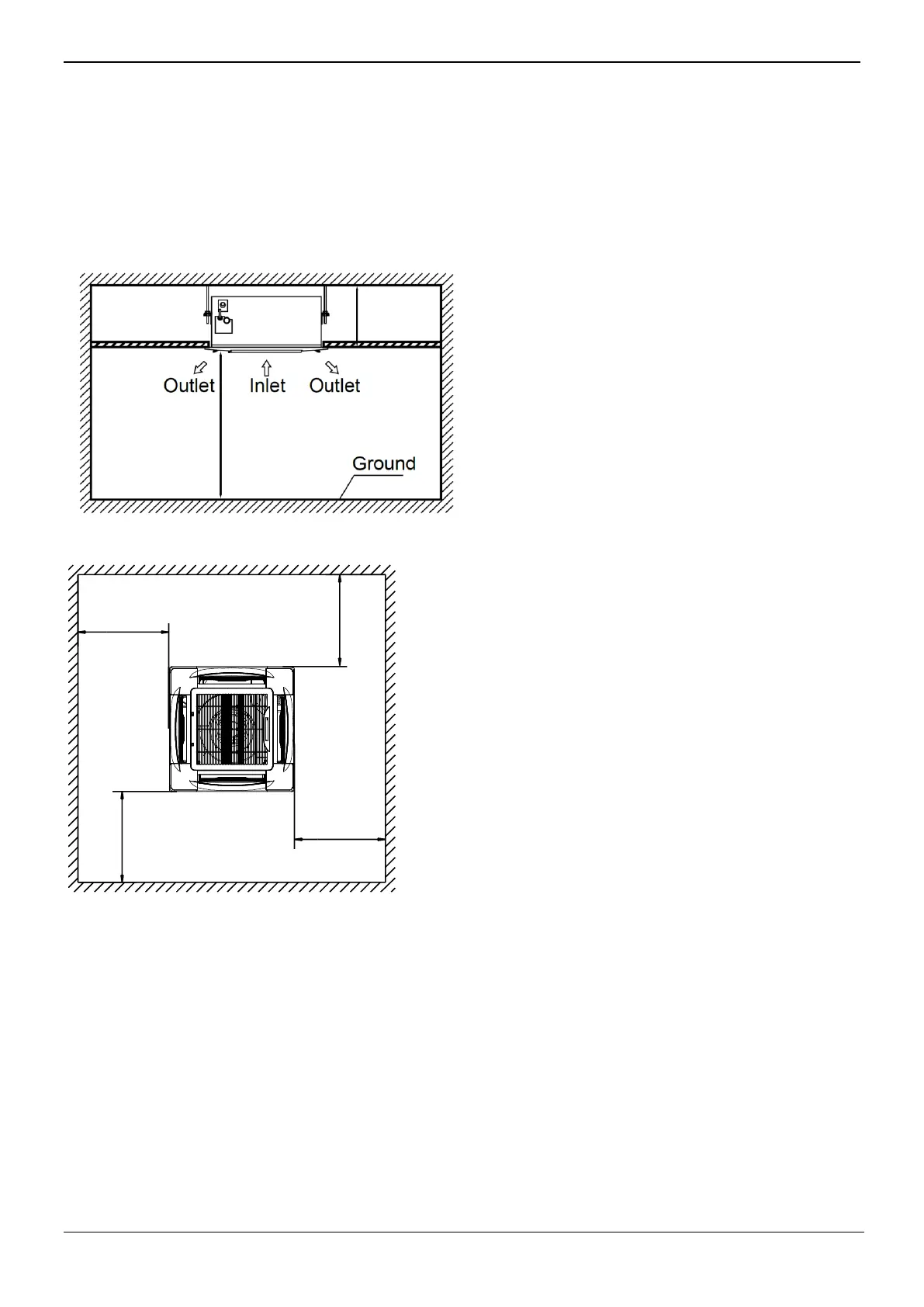

4. Service Spaces
1) There is enough room for installation and maintenance.
2) The ceiling is horizontal, and its structure can endure the weight of the indoor unit.
3) The outlet and the inlet are not impeded, and the influence of external air is the least.
4) The air flow can reach throughout the room.
5) The connecting pipe and drainpipe could be extracted out easily.
6) There is no direct radiation from heaters.
Unit：in(mm)
 Keep more than 7.55ft (2.3m) distance between the panel and ground of the room.
 Keep at least 3.28ft (1m) to the wall of each side.
>39-3/8
(1000mm)
>39-3/8
(1000mm)
>39-3/8 (1000mm)
>39-3/8 (1000mm)
＞90-9/15
(2300)
A≥11-1/32
(280)
