Four-way Cassette Silent Type 60Hz MCAC-VTSM-2016-05
88 Indoor unit

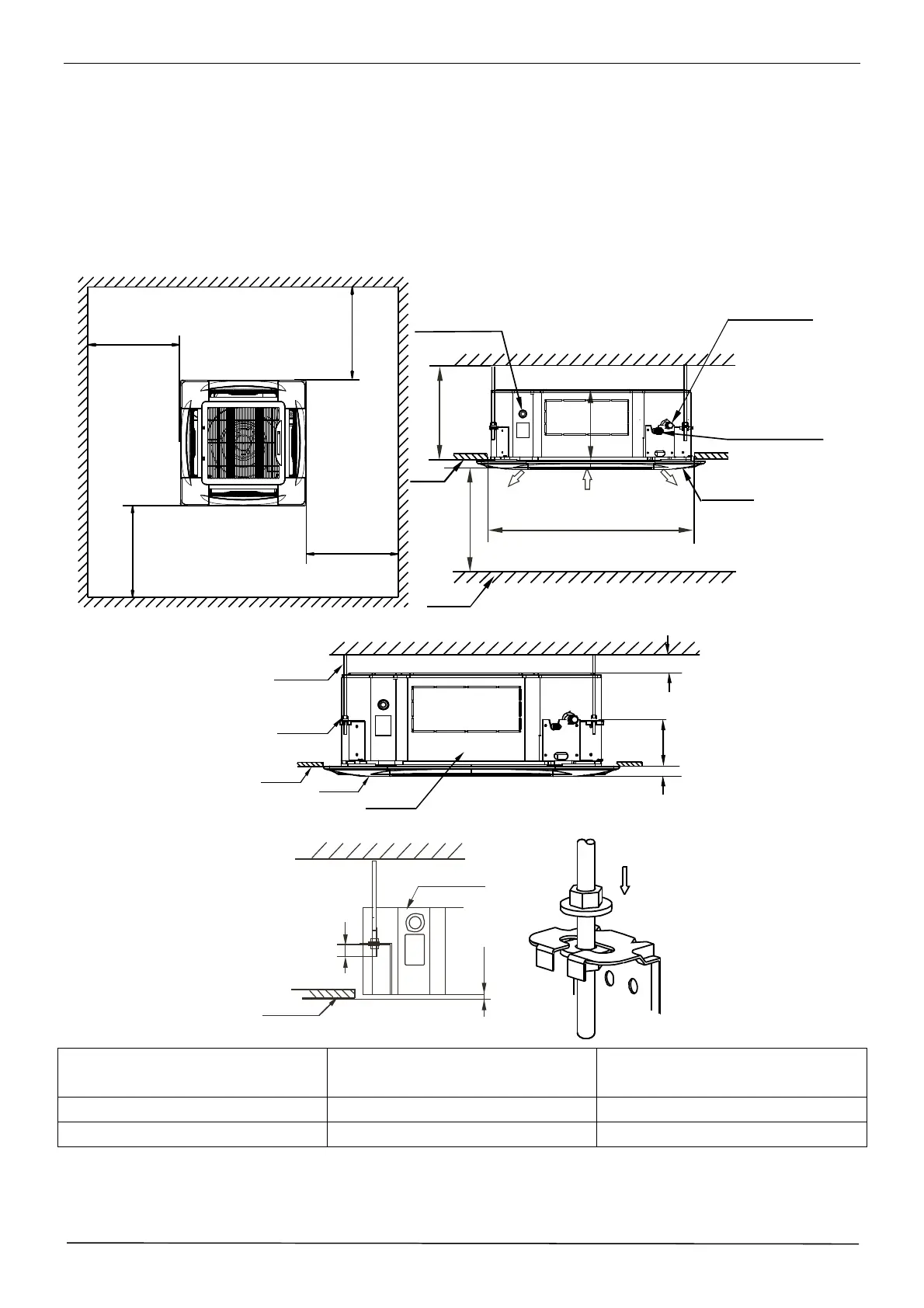

4. Service spaces
1) There is enough room for installation and maintenance.
2) The ceiling is horizontal, and its structure can endure the weight of the indoor unit.
3) The outlet and the inlet are not impeded, and the influence of external air is the least.
4) The air flow can reach throughout the room.
5) The connecting pipe and drainpipe could be extracted out easily.
6) There is no direct radiation from heaters.
Unit: in. (mm)
Model
A
in. (mm)
H
in.(mm)
8kW 9-1/16 (230) More than 10-1/4 (260)
9kW 11-13/16 (300) More than 13 (330)
More than 39-3/8 (1000)
More than 39-3/8 (1000)
More than 39-3/8 (1000)
More than 39-3/8 (1000)
A
H
Connet to drain pipe
Connect to gas pipe
Connect to liquid pipe
Floor
Ceiling
Panel
Air outlet Air inlet Air outlet
34-5/8 (880)
(Ceiling hole)
More than
98-7/16 (2500)
25/32 (20)
1-13/16 (46)
Install hanger
Panel
Ceiling
Main body
Hexagon nut
(For adjust to balance)
5-3/4 (146)
L
Main body of the unit
Ceiling
3/8-15/32 (10-12)
