MCAC-VTSM-2016-05 Compact Four-way Cassette
Indoor unit 47

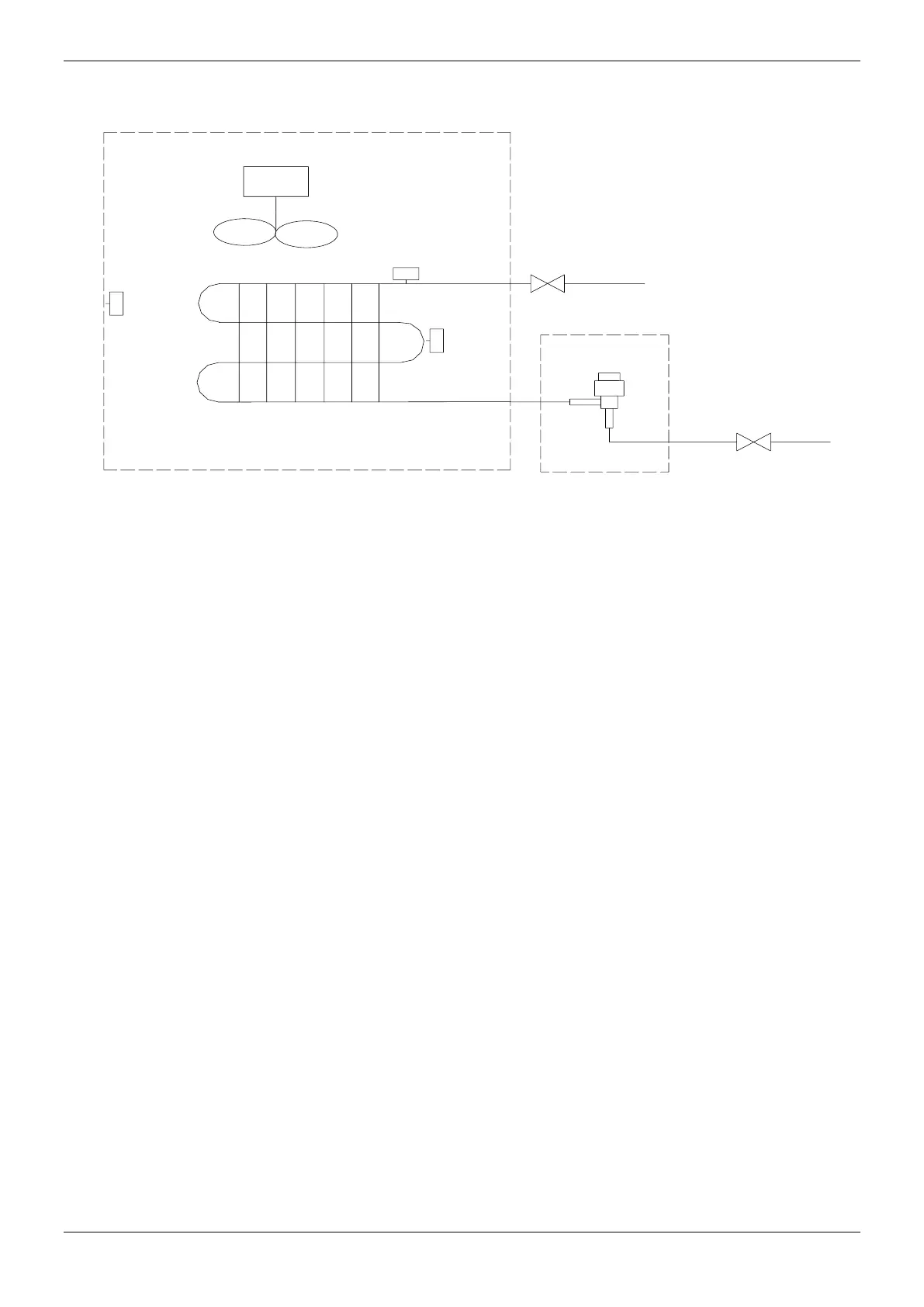

5. Piping Diagrams (EXV beside)
flare nut
flare nut
T2B
gas side
motor
heat exchanger
fan
EXV
liquid side
T2
T1
