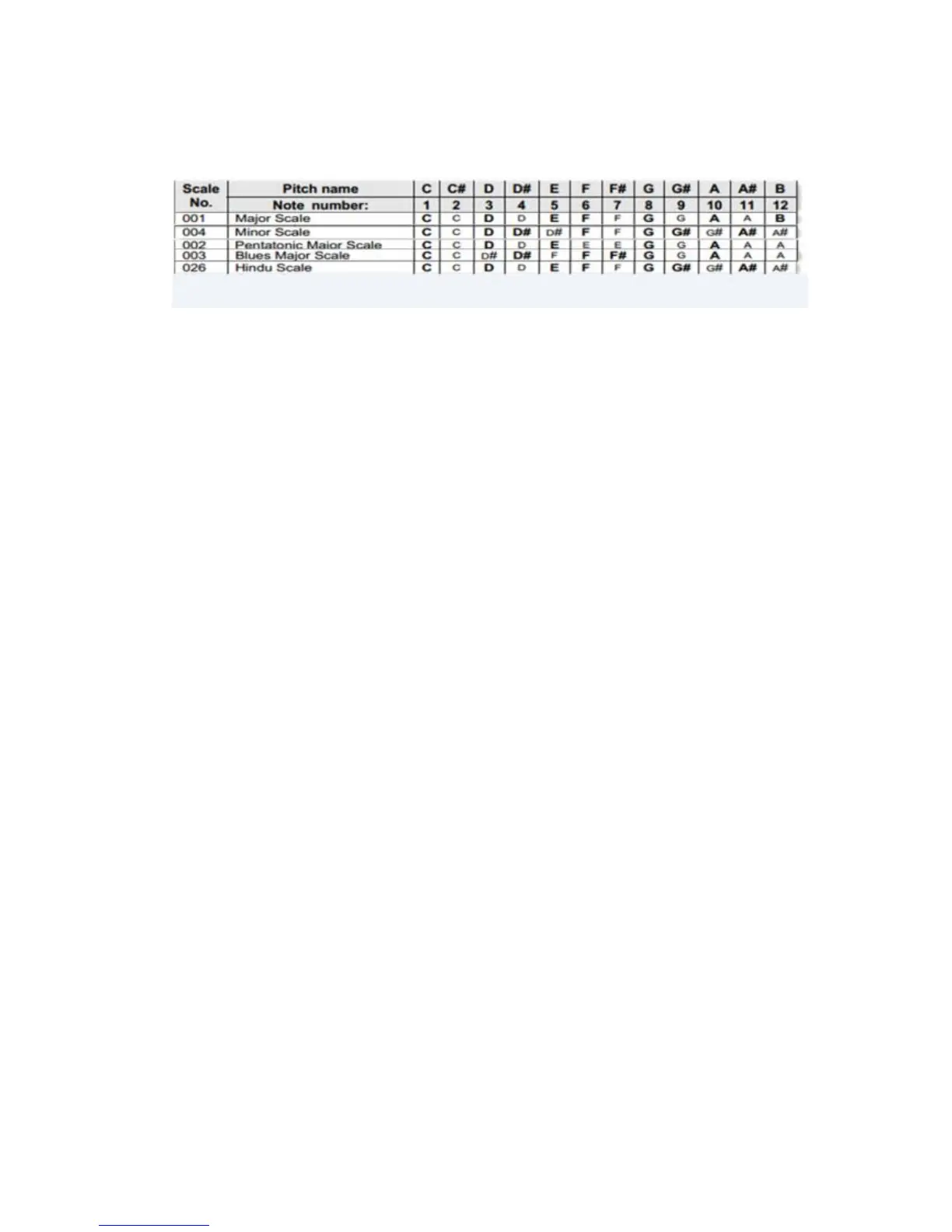

4.17 Keyboard Scale (SCALE):
Keyboard Scale, a group of 12 key note the order of keys in C ~ B
The NORM for the common scale.
Keys SCALE is consistent with the keys to NORM for the same function
4.18 PAD operating mode (PAD MODE):
PAD: Beating the Drum PAD, will send a Drum notes. For example: (99 18 7F,
99 18 00), in this mode, send channel default is 10, namely Drum
information channel
NOTE: Beating the Drum PAD, will send a keyboard notes. For example:(90 18
7F , 80 18 00)
CC: Beating the Drum PAD, will be sent a similar controller message .For
example: (B0 18 7F, B0 18 00), in this mode, beat PAD, LED lighting,
knock again, the LED will go out
PC: Beating the Drum PAD, will send a tone message. For example:(C0 18 ,
C0 18 )
In addition to the PAD mode, the rest of the model can be fixed by the MIDI
EDITER software change channels
4.19 RESET
When parameters change, multiplexing mode by pressing the button, the
parameters will be reset to the default boot state, LED out.
4.20 Pedal switch (SUSTAIN):
Connect the pedal to the pedal jack, if on the pedal, it can make the pedal MIDI
value.
4.21 USB 2.0:
There will be a USB jack on the side of the unit. The unit will be a class compliant
with both Mac and PC. It will mount as a USB-MIDI device. The unit will be fully powered
by USB.
