20
7.2 ADJUSTING THE TILLING WIDTH
Tilling width is controlled by the placement of the tines. There are 2 types of tines.
One has all 4 teeth facing the same direction; the other has 2 teeth facing in the
opposing direction.
There are two tilling widths available for this model. Position the 4 tines in the
specied orders below to achieve the tilling width needed.

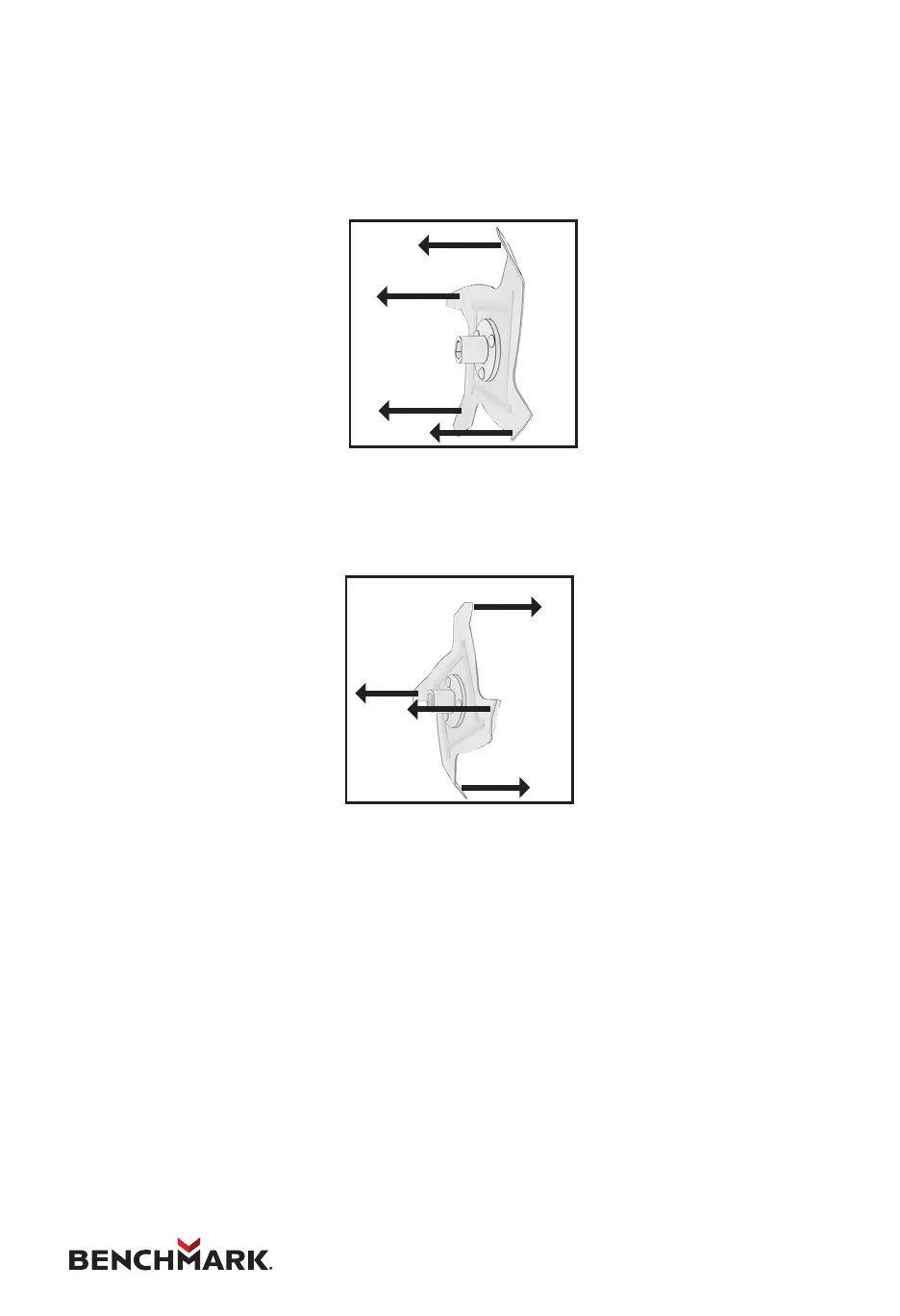

All 4 tips of the blade are
pointing the same direction.
2 tips are pointing in the opposing
direction to the other two.
A
B
A AB B
B
B
A
A
All 4 tips of the blade are
pointing the same direction.
2 tips are pointing in the opposing
direction to the other two.
A
B
A AB B
B
B
A
A
