3.2 ASSEMBLING THE WHEELS

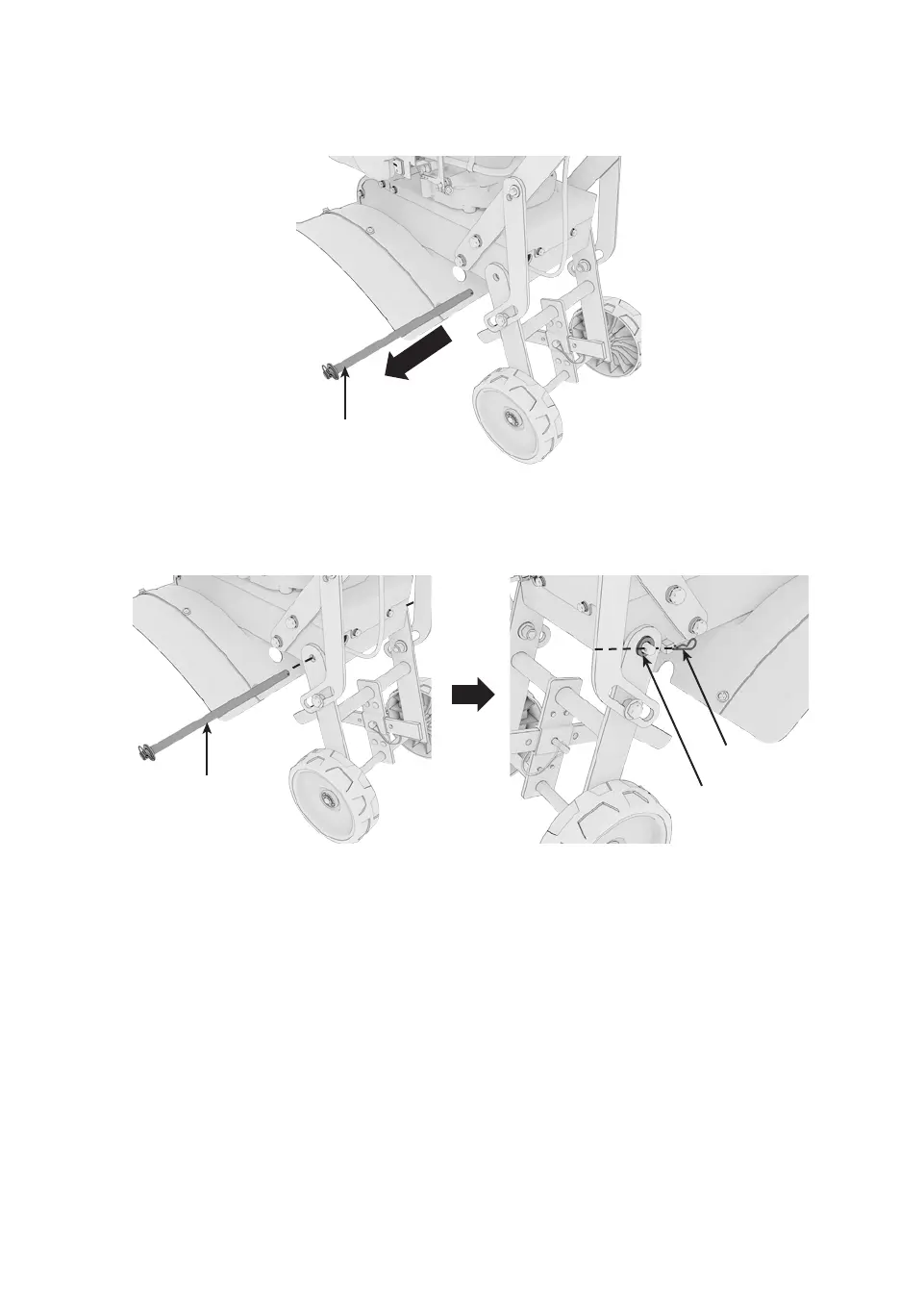

1. Remove the cotter pin and at washer from one end of pivot rod. Remove
the rod from frame.
2. Align the pivot holes in the wheel assembly to the pivot holes in frame and
slide the pivot rod through the aligned holes. Secure by reinstalling at
washer and cotter pin.
Pivot Rod
Pivot Rod
Cotter Pin
Washer
Pivot Rod
Pivot Rod
Cotter Pin
Washer
