~I
DLAN
D
____________
M_o_d_e_l
M_X_T_1_0_5

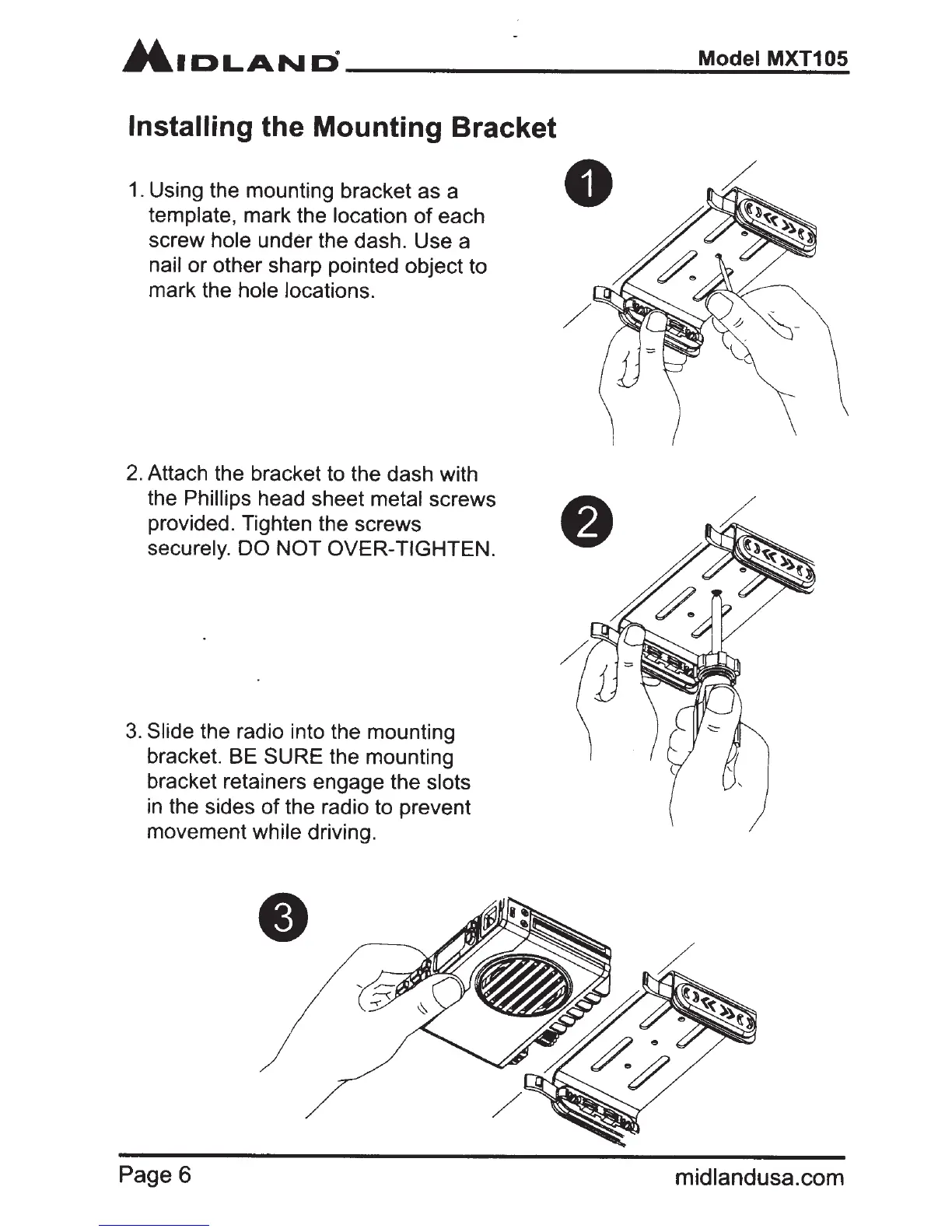

Installing the Mounting Bracket
1. Using the mounting bracket as a
template, mark the location
of
each
screw hole under the dash. Use a
nail or other sharp pointed object to
mark the hole locations.
2. Attach the bracket to the dash with
the Phillips head sheet metal screws
provided. Tighten the screws
securely.
DO NOT OVER-TIGHTEN.
3.
Slide
the radio into the mounting
bracket. BE SURE the mounting
bracket retainers engage the
slots
in
the sides
of
the radio to prevent
movement while driving.
Page 6
/
