Chapter 1: Introduction & Overview
EL-50332 EV/HEV Battery Service Tool

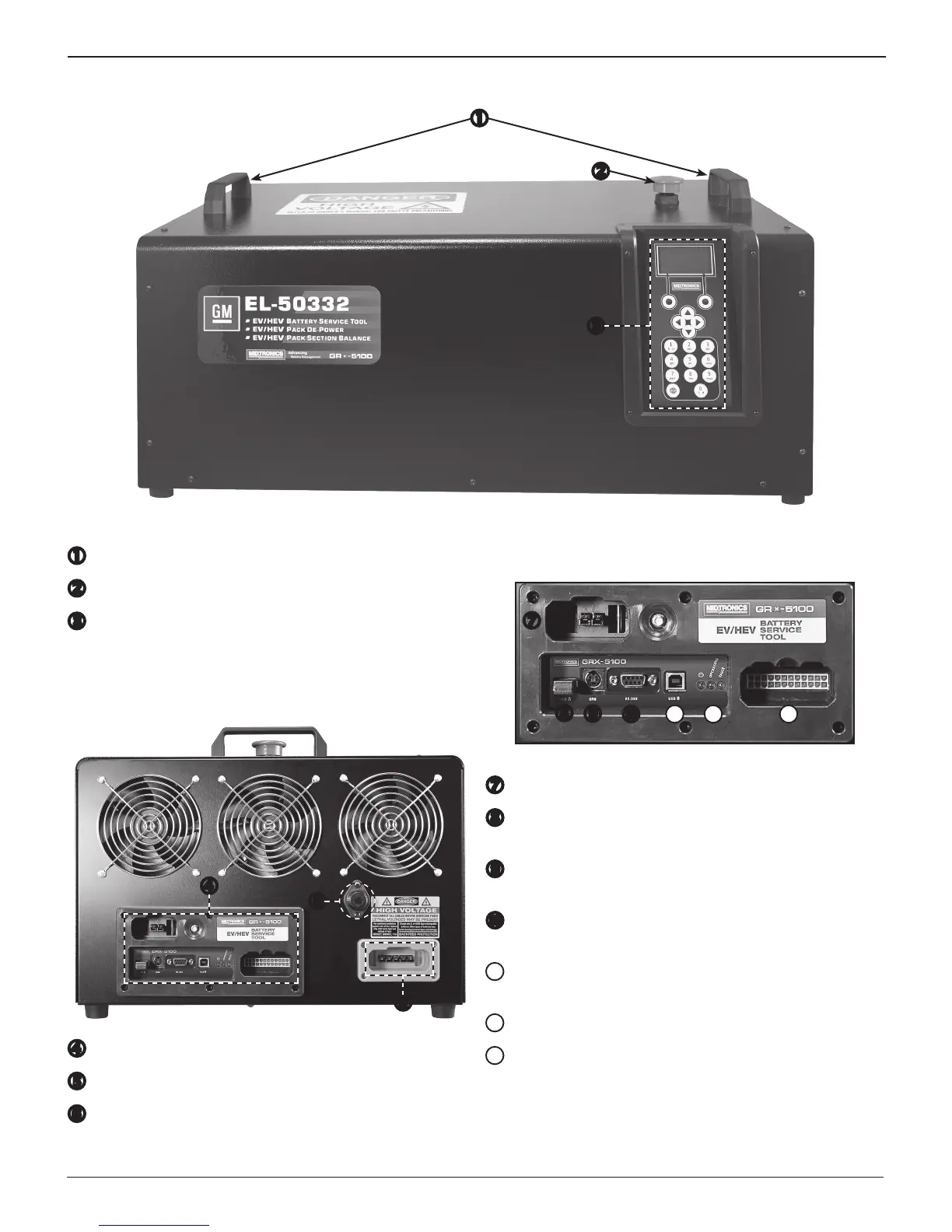

Front View




Lifting Handles

Emergency STOP Button

Keyboard & Display
Right End Panel




Connection Panel

11A Midget Fuse

High Voltage Cable Connection
Connection Panel




1211 13

External 12V Auxiliary Power

USB-A Port
For connecting an external USB-style jump drive.

GR-8
For connecting a GR8-style Control Module.

RS-232
For future use.
11
USB-B
For future use.
12
Diagnostic Indicator LED Lights
13
VIM Low Voltage Cable Connection
Used to connect to the low voltage battery electronic
control unit based on the application.
