EXP-1080 JLRChapter 10: Tester Internal Batteries
The Tester uses 6 AA, 1.5-volt batteries (alkaline
recommended) to allow testing of batteries down to 1 volt
and supply power while the menu is active. The analyzer can
test batteries down to 5.5 volts when the internal batteries
are not functioning.

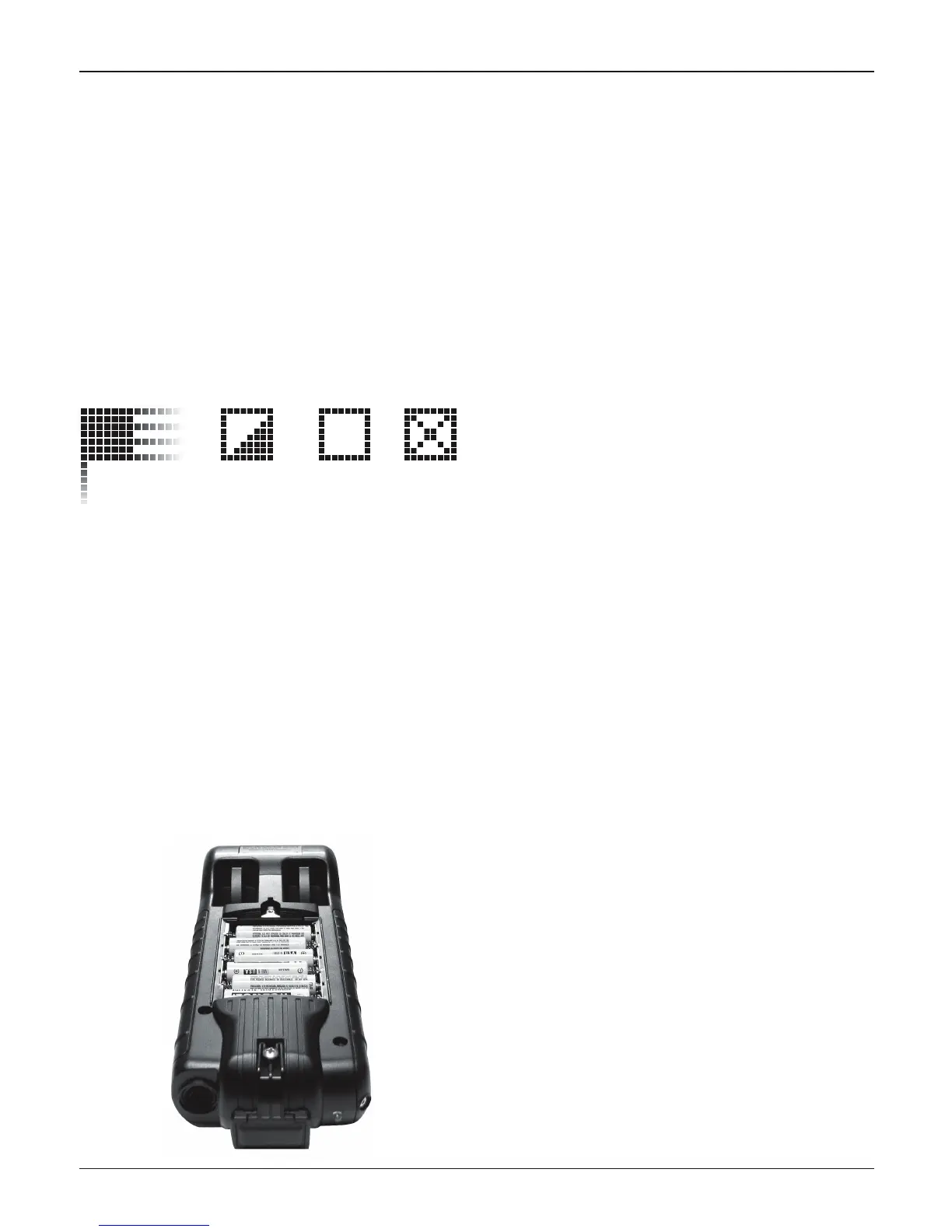

Battery Power Indicator
The square in the upper left corner of the display indicates
the charge level of the battery pack. The square is black
when the battery pack is fully charged. It gradually changes
to white as the charge level declines. The Tester will display a
warning message when the batteries need replacing.
Full
Powered
by vehicle
battery
Decreasing Low
Power Level Indicator for AA Batteries
Replacing the Tester Batteries
1. Turn the Tester face down.
2. Use a Philips screwdriver to remove the screw securing
the door to the battery compartment.
3. Lift the door at the tab and place it aside.
4. Remove the discharged batteries.
5. Insert new batteries as shown, make sure the positive
and negative terminals are positioned correctly.
6. Reposition the door on the battery compartment.
7. Reinsert and tighten the screw.
