Miele CVA 2650 User Manual

NOTE: Drawing is not to scale.
SPECIFICATION SHEETS 010405

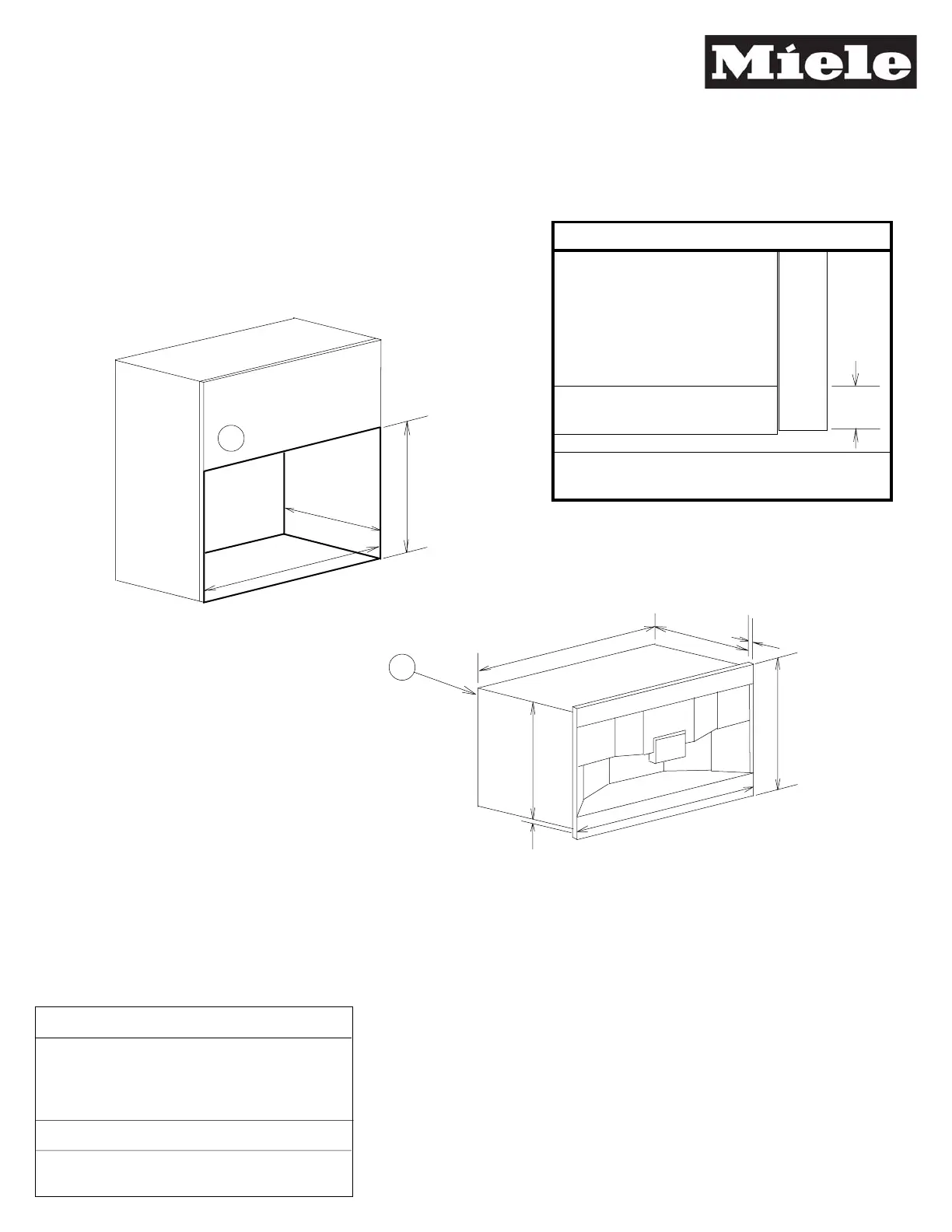

Product and Cut-out Dimensions
Built-in Coffee System
CVA 2650 - Wall cabinet installation
E -
O -
5 foot - 120 Volt - 15 Amp 3-wire
molded plug connects left upper rear.
Standard NEMA 5-15 outlet.
Location must be accessible.
Location Codes
Notes
• All installations must be done in
accordance with local codes.
12" min.
13 3/4"
11 5/ 8"
19 1/2"
7/ 8"
14 5/ 8"
O
13 3/ 4"
See Detail
18 1/ 8" - 18 3/ 8"
18 1/16""
E
1/ 2"
Lower Edge Detail - Full overhang
CVA Housing
Cabinet base
Front of Unit
5/8"
Unit should be installed without removable feet.
Unit will overhang cabinet base
