NOTE: Drawing is not to scale.
SPECIFICATION SHEETS 010405

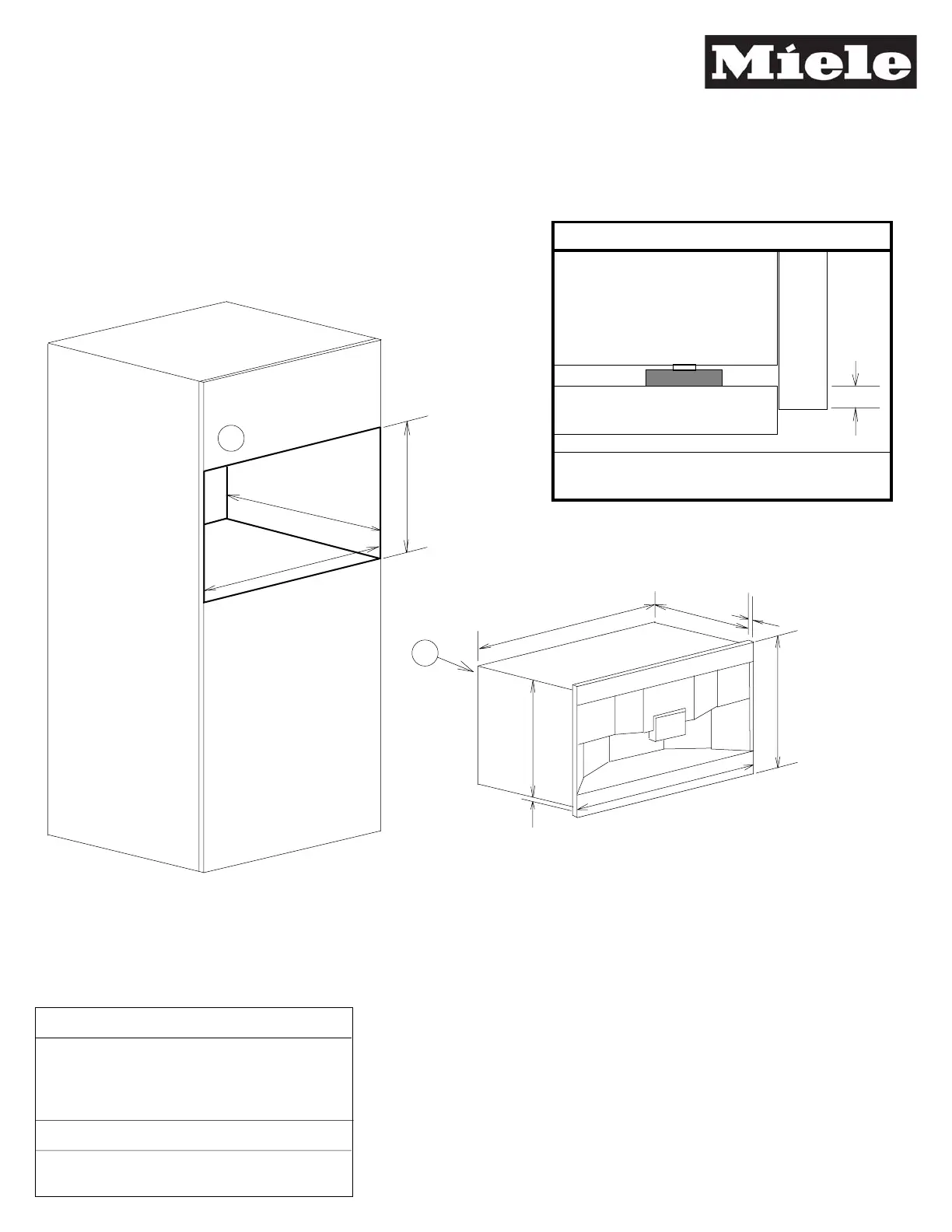

Product and Cut-out Dimensions
Built-in Coffee System
CVA 2650 - Tall cabinet installation
E -
O -
5 foot - 120 Volt - 15 Amp 3-wire
molded plug connects left upper rear.
Standard NEMA 5-15 outlet.
Location must be accessible.
Location Codes
Notes
• All installations must be done in
accordance with local codes.
12" min.
13 3/4"
11 5/ 8"
19 1/2"
7/ 8"
14 5/ 8"
O
14 3/16"
See Detail
18 1/8" - 18 3/ 8"
18 1/16"
E
1/ 2"
Lower Edge Detail - Limited overhang
CVA Housing
Cabinet Shelf
Front of Unit
Removable feet (4)
1/4"
Unit should be installed with removable feet in
place to prevent contact with cabinet doors
