CVA 4062/CVA 4066/CVA 4068 Coffee Systems
6. Remove the right cover.
7. Remove the five central cover retaining screws (T10); see Figure 025-2, Item 2.
8. Remove the central cover.

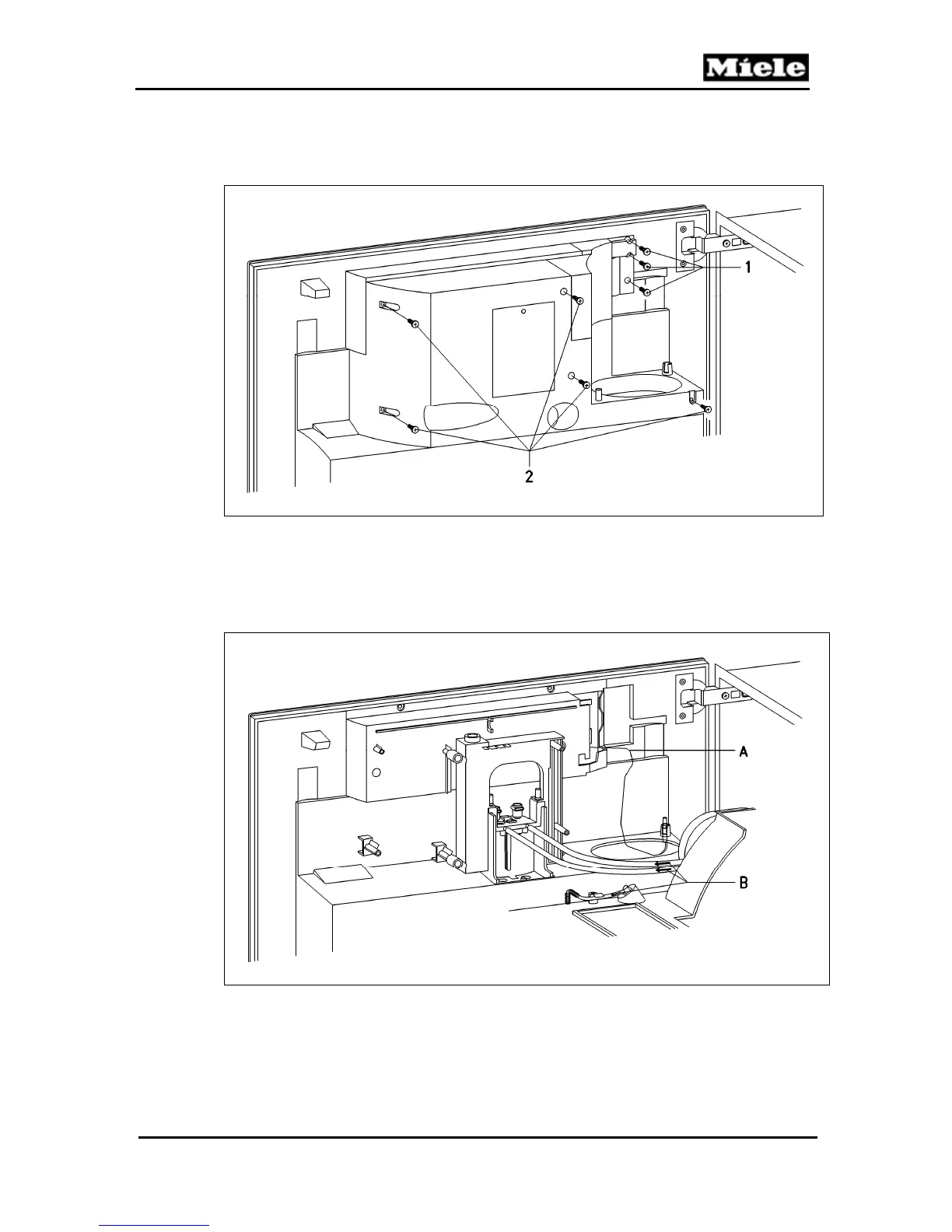

Figure 025-2: Right and Central Covers
9. Disconnect the three milk and coffee hoses; see Figure 025-3, Item B.
10. Disconnect the milk container sensor connection from the control/display
electronic (blue wire); see Figure 025-3, Item A.
11. Remove the stainless-steel cover from the front of the main dispenser.
Figure 025-3: Hose and Wire Connections
12. Release the plastic elbow with water line from its guide in the upper right-hand
corner of the control/display electronic's cover (near Item 2 in Figure 025-4).
13. Release all hoses and wires from their guides in the control/display electronic's
cover. Mark the location of each hose.
14. Remove the four main dispenser retaining screws (T10). See Figure 025-4, Item 1.
