CVA 4062/CVA 4066/CVA 4068 Coffee Systems

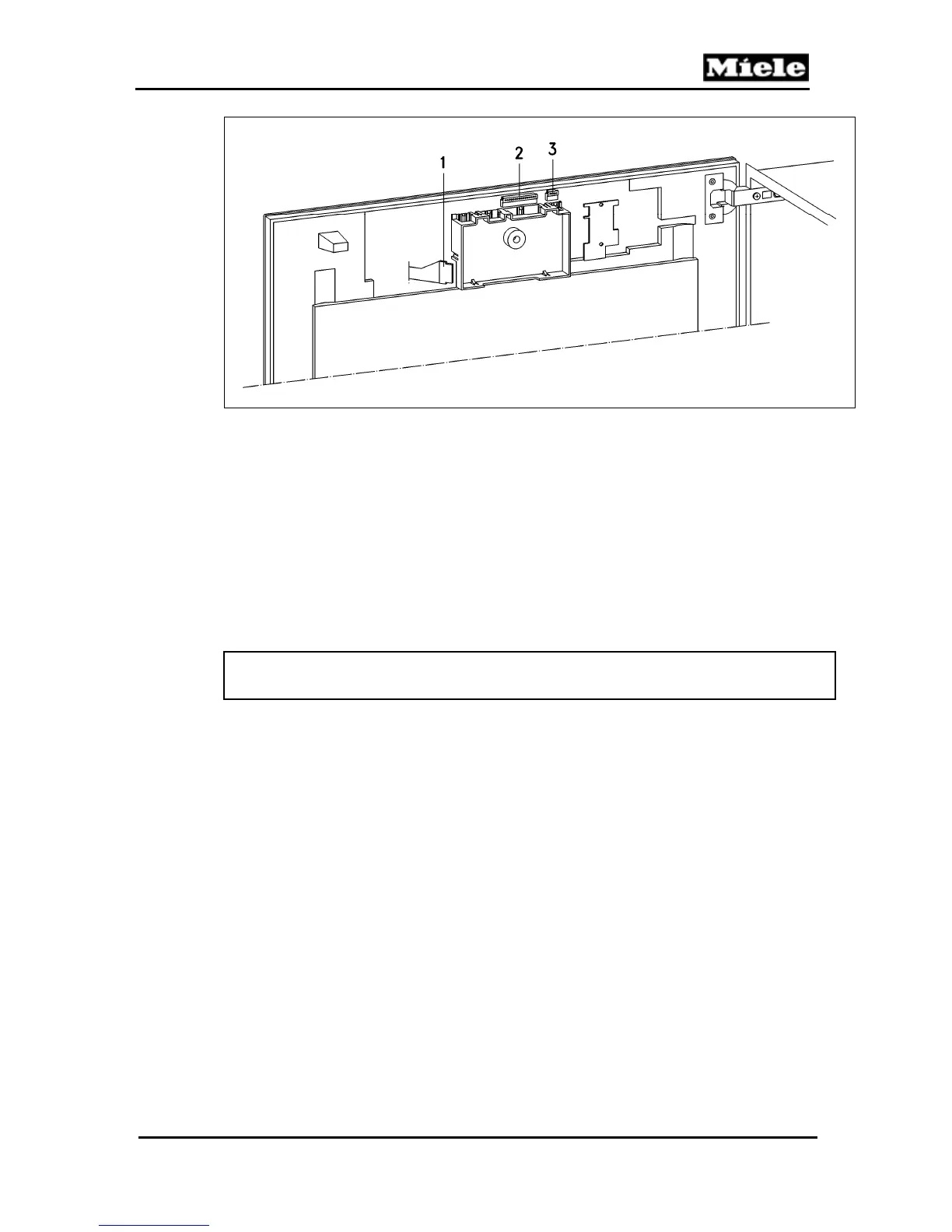

Figure 025-6: Control/Display Electronic Connections
1
Control panel (A1) connection
2, 3
Power electronic (2N1) connections
4.2 Dispenser Present Switch (S87/6) Removal
1. Remove the side cover.
2. Remove the central cover.
3. Squeeze the tabs of the microswitch housing inwards.
4. Pull the housing up and out; remove the microswitch from the housing.
4.3 Dispensing Area Light (1H3, 2H3) Removal
Note:
Refer to Figure D-2 or D-3, Items 10 and 12, for component location.
1. Remove the side cover.
2. Remove the central cover.
3. Unsnap the appropriate lighting unit from its holder.
4. Disconnect the wiring harness.
4.4 Door Removal
1. Disconnect the appliance from power.
2. Turn off the water supply (CVA 4066).
3. Open the door.
4. Remove the control/display electronic. See Section 025-4.1.
5. Remove the screws that hold the door hinge to the front door cover (see Figure
025-7, Item 1) and remove the door from the appliance.
