Installation

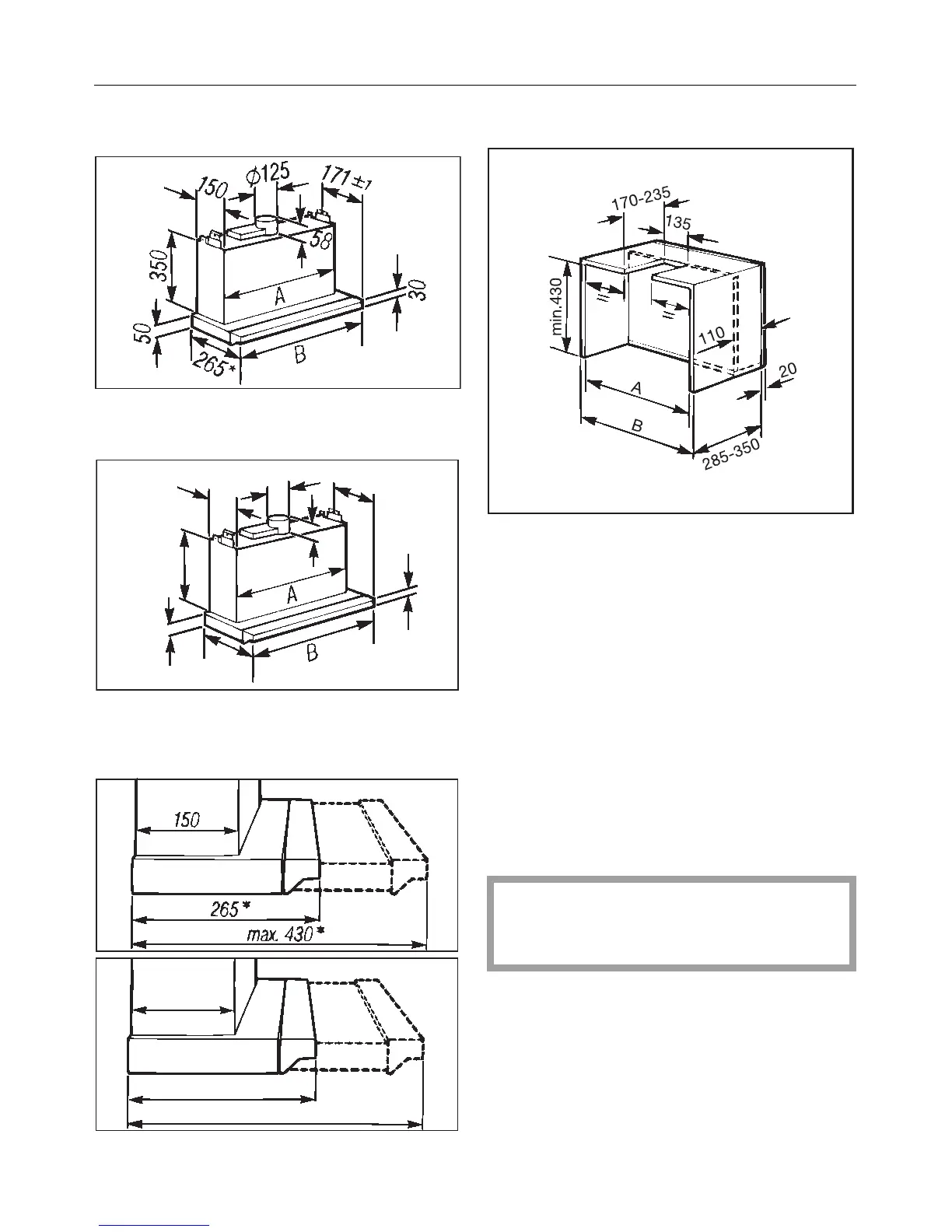

Appliance dimensions
*
plus depth of control panel
Wall unit dimensions
The dividing wall must be remov-
able to enable the cooker hood to
be adjusted for height and depth.
5
15
/ 16 ˝
10
7
/ 16 ˝
max. 16
15
/ 16 ˝
2˝
13
13
/16˝
5
15
/
16
˝
4
15
/
16
˝
6
5
/
8
˝
2
5
/
16
˝
1
3
/16˝
10
7
/
16
˝
A: DA 262 i = 560; DA 272 i = 660; DA 292 i =860
B: DA 262 i = 595; DA 272 i = 695; DA 292 i =895
A: DA 262 i = 562-568 = 22 1/8" - 22 3/8"
DA 272 i = 662-668 = 26 1/16" - 26 5/16"
DA 292 i = 862-868 = 33 15/16" - 34 3/16"
B: DA 262 i = 600 = 23 5/8"
DA 272 i = 700 = 27 5/8"
DA 292 i = 900 = 35 1/2"
170-235 = 6 3/4" - 9 1/4"
135 = 5 3/8"
430 = 17"
110 = 4 11/16"
20 = 3/4"
285-350 = 11 1/4" - 13 7/8"
A: DA 262 i = 22 1/16’’; DA 272 i = 26’’;
DA 292 i =33 7/8’’
B: DA 262 i = 23 5/8’’; DA 272 i =27 9/16’’;
DA 292 i=35 7/16’’
