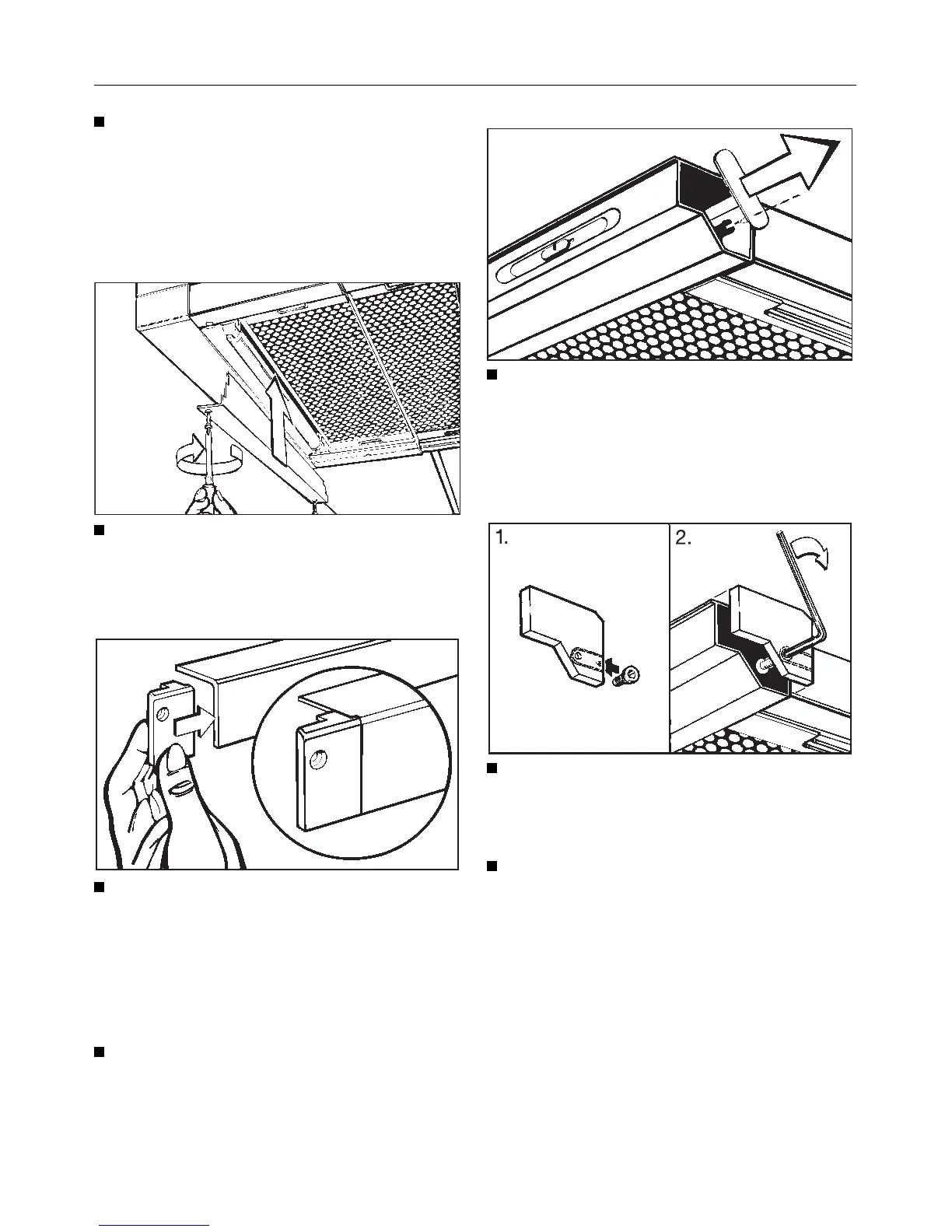

Installation
Attach the spacer bar to the guide
rail (2) located behind the light tube.
Fitting the light tube cover
– DA 262 i
Position the light tube cover and
screw into place (see diagram).
– DA 272 i, DA 292 i
Attach the extension pieces supplied
to the light tube cover, then position
the now extended light tube cover
and screw into place.
Removing the transit strips
Pull the deflector plate out to its limit.
Pull off the transit strips on each side.
Fitting the cover caps
For cooker hoods without a front panel
or lightshield:
Push the Allen screws from the
accessory kit onto the cover caps
until the screw heads lie directly
under the holes in the cover caps.
Secure the cover caps on both sides
of the deflector plate using the Allen
screws.
Preparing the lightshield
Lightshields . . .
. . . weighing up to 600 g can be fitted
normally.
. . . Those weighing over 600 g need to
have the springs in the snap fittings pre-
tensioned:
