Installation
54

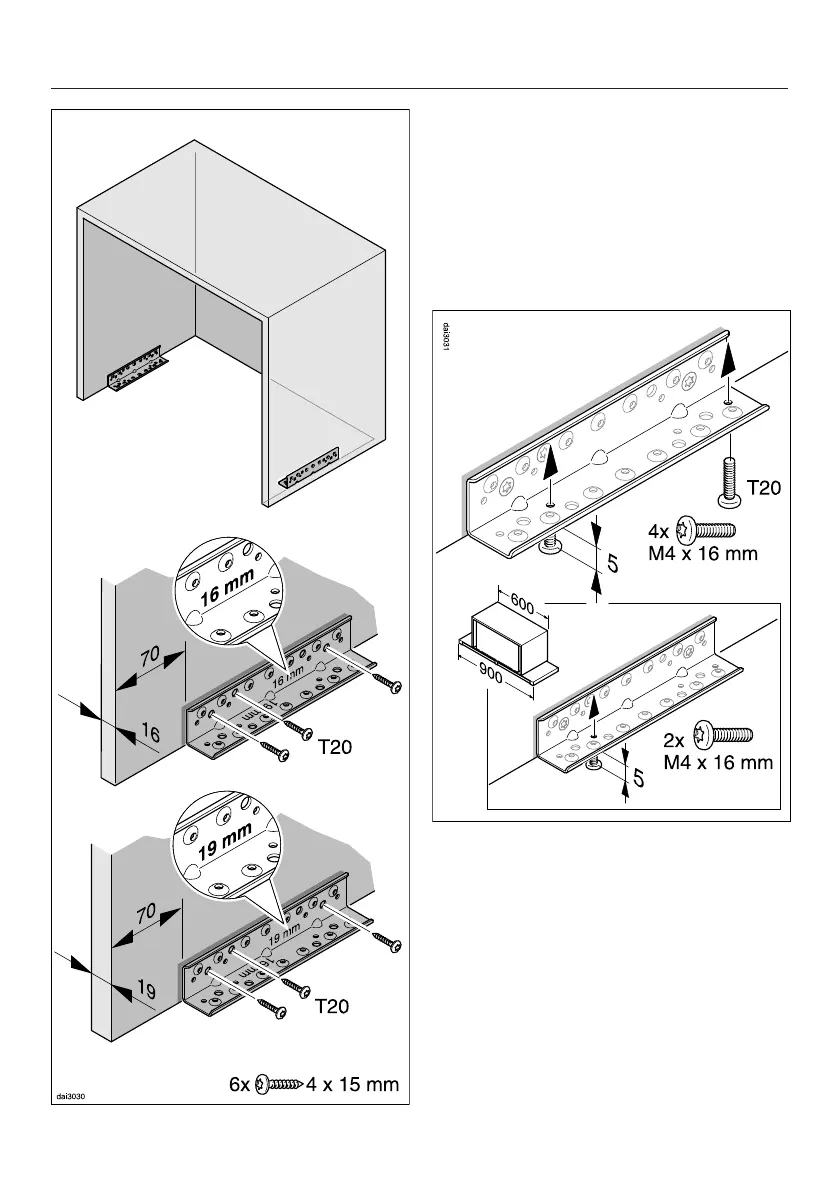

Screw the brackets onto the right and
left inside walls of the housing unit so
that they are flush with the bottom
edges of the unit. The brackets are
designed for 16 and 19mm thick unit
sides. Orientate the bracket so that
the vertical depth matches the
thickness of the unit side, as shown.
Fit the screws for attaching the
cooker hood so that they protrude by
about 5mm, as shown. Only use the
front screws when fitting a 900mm
wide cooker hood in a 600mm wide
wall unit.
