Installation
75

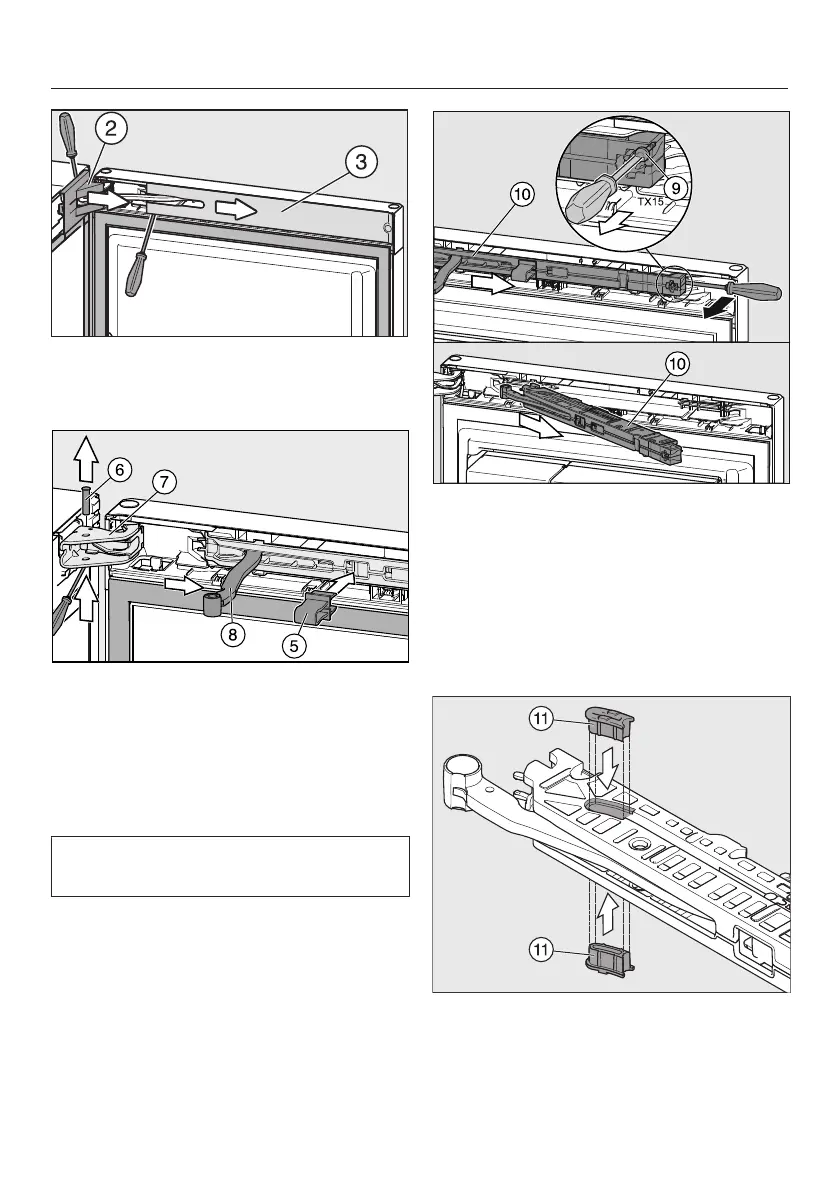

Remove cover from the door hinge
and cover from the soft-close
mechanism.
Click the red safety device
(supplied with the refrigeration
appliance) into place in the opening.
The safety device prevents the soft-
close mechanism and the hinge plate
from snapping shut.
Do not remove the red safety device
until instructed to do so.
Push the pin out of the door
hinge and remove it.
Move the hinged arm of the soft-
close mechanism away from the door
hinge.
Undo and remove the screw on
the soft-close mechanism and
insert a screwdriver behind the soft-
close mechanism.
Remove soft-close mechanism.
–Fitting the door opening angle
limiter
Press a door opening angle limiter
in from above and below as shown.
