Installation
76

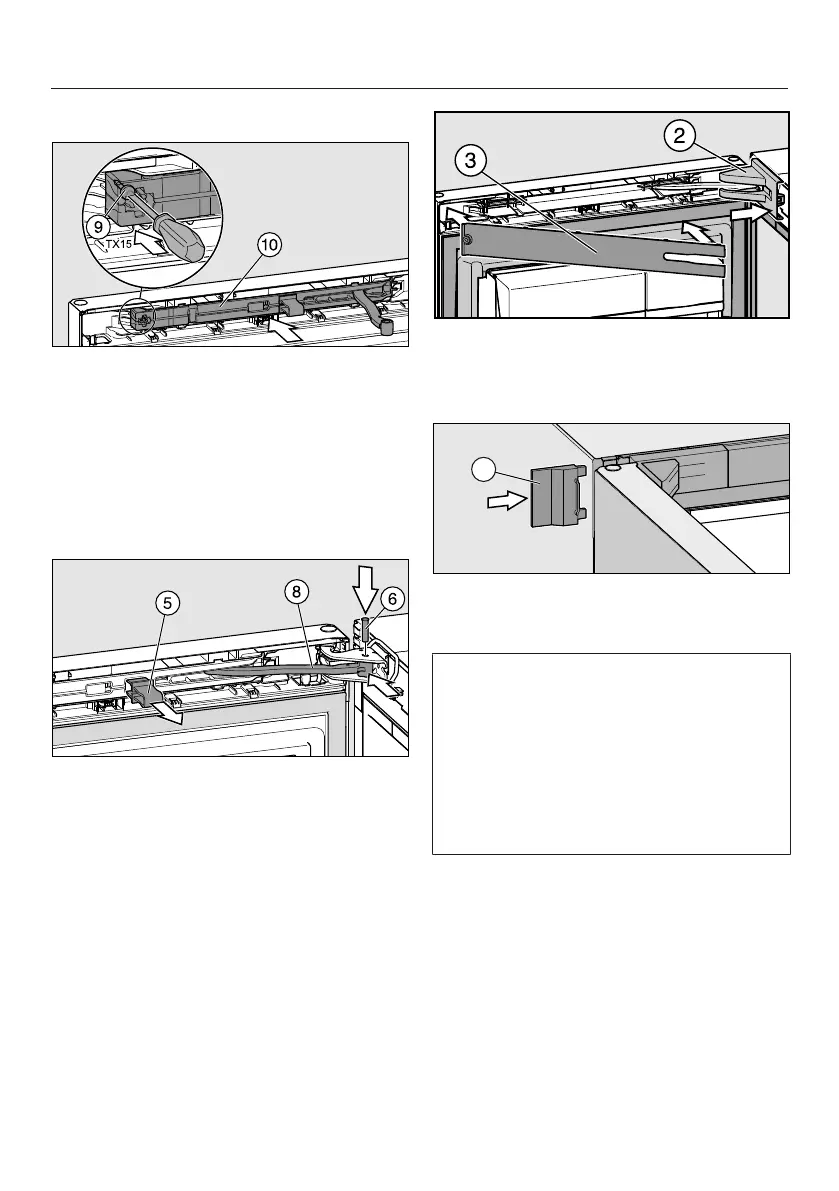

–Fitting the soft-close mechanism
Insert the soft-close mechanism
on the door hinge side (at an angle
initially) so that it clicks into position.
Then press the other end of the soft-
close mechanism into the opening.
Secure the soft-close mechanism
with the screw.
Push the hinged arm into the
opening on the door hinge.
Insert the pin into the door hinge
from above. Turn this with a
screwdriver (by approx. ¼ turn) until
both lugs on the pin click into
position correctly in the grooves.
Pull out the red safety device.
Tip: Keep the red safety device in case
you want to change the door hinging
again at a later date.
Fit the cover on the door hinge.
Fit the panel so that it clicks into
position.
Push on the outer cover.
Close the appliance door.
If you intend to install your appliance
“side-by-side” with another
refrigeration appliance, please ensure
that you observe the instructions in
“Installing in a side-by-side
combination”. The necessary
installation parts are supplied with
your appliance.
