KM 227, KM 228
* Space for fixing and cable

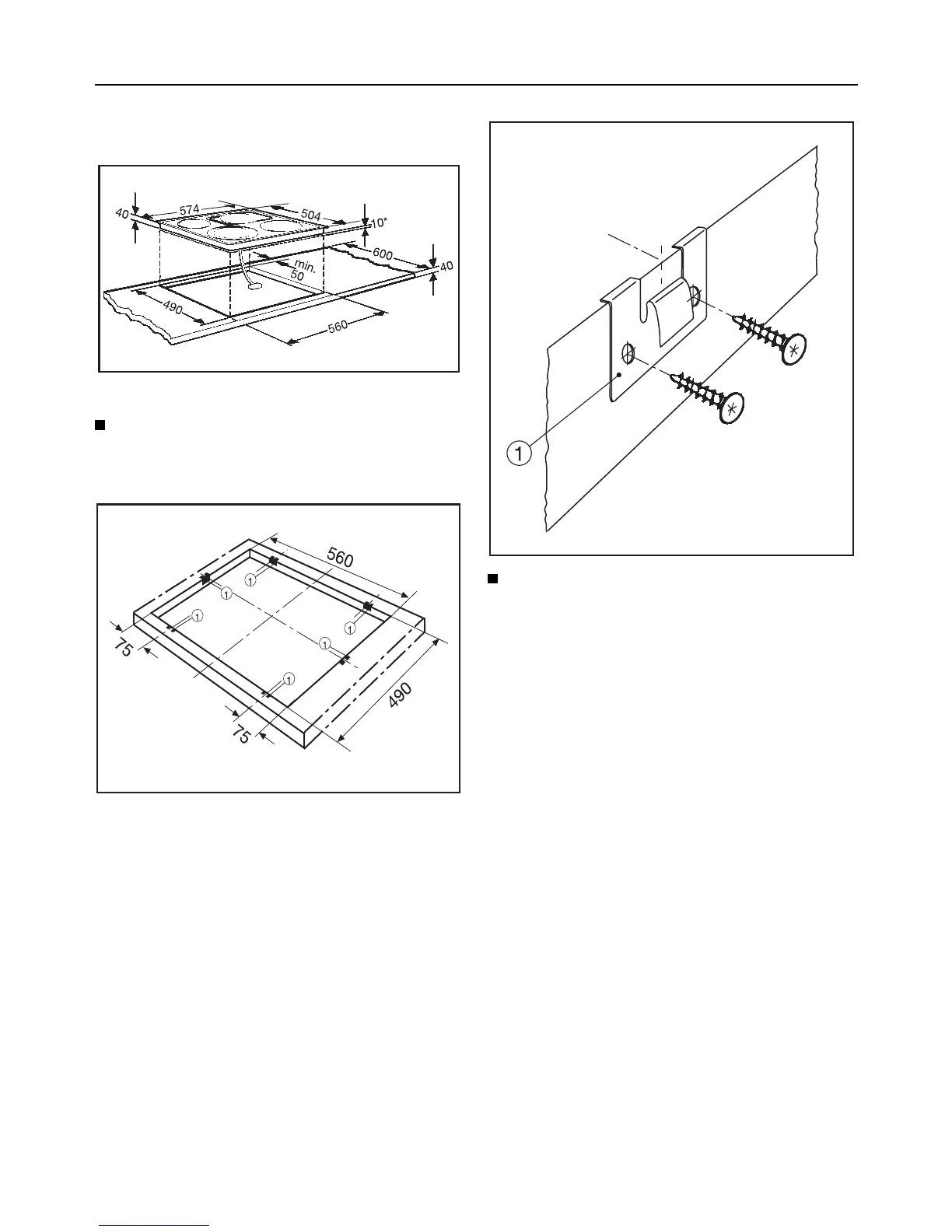

Prepare the worktop cut-out as illus-
trated.
Lay the spring clamps supplied b
on the top edge of the cut-out in the
positions indicated and secure with
2 screws each.
With granite worktops, the spring
clamps must be positioned and se-
cured with strong double-sided ad-
hesive tape. In addition coat the edges
of the spring clamps with silicone. The
screws are not necessary for granite
worktops.
Installation - Ceramic hobs
71
