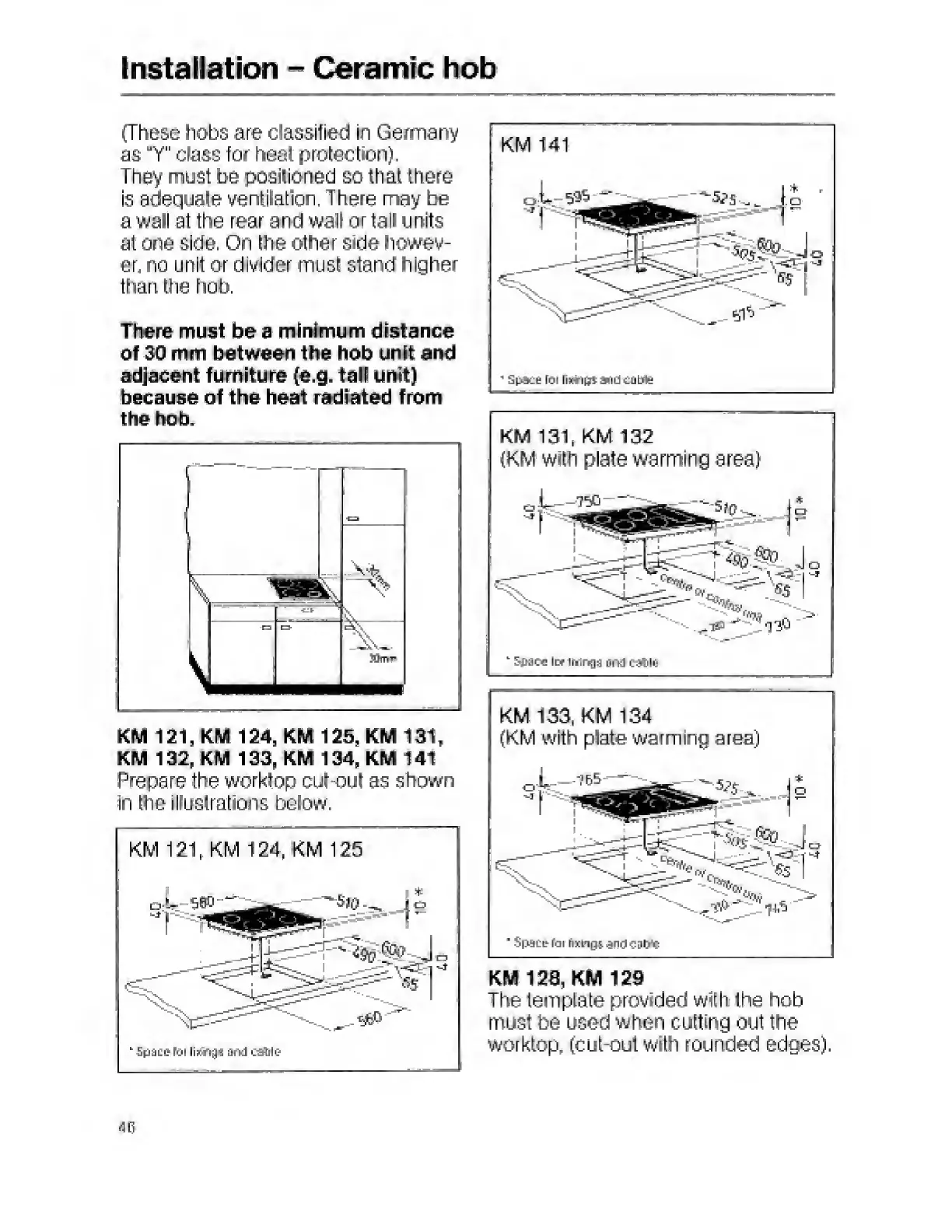

Miele H 818 - Page 46

Installation - Ceramic hob
(These hobs are classified in Germany
as U Y" class for heat protection).
They must be positioned so that there
is adequate ventilation, i here may be
a wall at the rear and wall or tail units
at one side, On the other side howev¬
er, no unit or divider must stand higher
than the hod.
There must be a minimum distance
of 30 mm between the hob unit and
adjacent furniture [e,g, tall unit)
because of the heat radiated from
the hob.
3
K_
s
*3*
fer
Mnrn
KM 121, KM 124, KM 125, KM 131,
KM 132, KM 133, KM 134, KM 141
Prepare the worktop cutout as shown
in the illustrations below.
KM 121, KM 124, KM 125
L Space Par listf-gs end cable
KM 131, KM 132
(KM with plate warming area)
L 5p3CB I ™ Hungs end cable
KM 133, KM 134
(KM with plate warming area)
' Space fcii l-rnn;
KM 123, KM 129
The template provider! with the hob
must be used when cutting out the
worktop, (cut-out with rounded edges).
